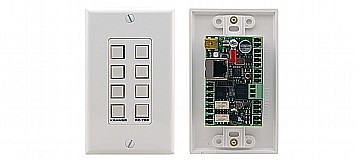

לחצני פיקוד לחדרי ישיבות חכמים Kramer RC-78R

8 RGB−color, backlit buttons
Custom labeled, removable button caps
1 Ethernet port
1 KNET™ port
1 RS−485 port
2 Bidirectional RS−232 ports
2 IR emitter ports
1 GPI/O port
2 Relay ports
1 IR sensor for learning
Site−CTRL™ software compatible
Mounts in standard 1 Gang US Decora wall junction boxes
Size - 1 Gang

מאפיינים ושידרוגים:

פרטים נוספים:

אחריות: 12 חודשים
זמן אספקה: עד14ימי עסקים
דגם: Kramer RC-78R

מחיר ₪ 2,137 ILS 11/7/2027 In stock Kramer RC-78R Kramer RC-78R

קנה עכשיו הוסף לסל

תיאור מלא
מפרט טכני
חוות דעת

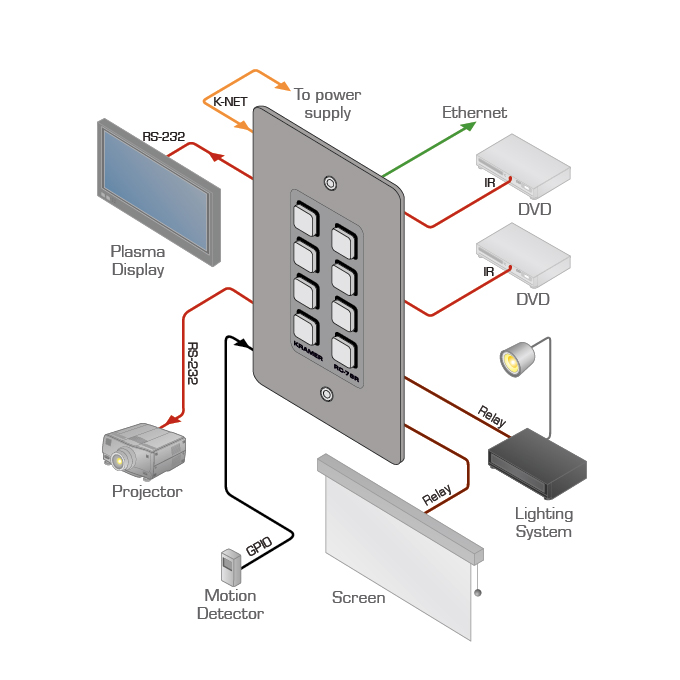

INPUTS: 1 RS−485, 2 RS−232, 1 GPI/O, 1 K−NET on terminal block connectors, 1 Ethernet on an RJ−45 connector, 1 infrared sensor, 1 Mini USB for programming.
OUTPUTS: 2 IR emitter, 2 Relays (36V AC or DC, 2A, 60V AC maximum on non−inductive load), on terminal block connectors.
DEFAULT IP SETTINGS: IP number − 192.168.1.39; Mask – 255.255.0.0; Gateway – 0.0.0.0.
POWER CONSUMPTION: 12V DC, 570mA.
OPERATING TEMPERATURE: 0° to +40°C (32° to 104°F).
STORAGE TEMPERATURE: −40° to +70°C (−40° to 158°F).

HUMIDITY: 10% to 90%, RHL non−condensing.
PRODUCT DIMENSIONS: 7.94cm x 2.80cm x 12.38cm (3.13" x 1.10" x 4.87" ) W, D, H
PRODUCT WEIGHT: 0.1kg (0.2lbs) approx.
SHIPPING DIMENSIONS: 23.20cm x 13.60cm x 10.00cm (9.13" x 5.35" x 3.94" ) W, D, H
SHIPPING WEIGHT: 0.4kg (0.8lbs) approx.
INCLUDED ACCESSORIES: Power supply, black and white design plates, black and white Decora mounting frames, Label set, screwdriver.
