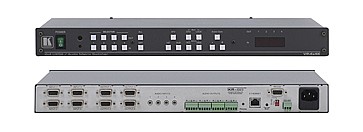

מטריצת Kramer VP-4x4K-עם 4 כניסות VGA לארבע יציאות VGA.

מאפיינים ושידרוגים:

מחיר ₪ 4,384 ILS 11/7/2027 In stock KRAMER ELECTRONICS VP-4x4K VP-4x4K

קנה עכשיו הוסף לסל

INPUTS:	4 UXGA on 15−pin HD connectors; 4 unbalanced stereo audio signals on 3.5mm mini jacks.
OUTPUTS:	4 UXGA on 15−pin HD connectors;4 balanced stereo audio signals on 5−pin terminal block connectors.
MAX. OUTPUT LEVEL:	Video: 2.2Vpp; Audio: >15Vpp.
BANDWIDTH (-3DB):	Video: 400MHz; Audio: 19kHz.
DIFF. GAIN:	0.07%.
DIFF. PHASE:	0.03Deg.
K-FACTOR:	<0.05%.
S/N RATIO:	Video: 73.5dB @5MHz; Audio: 76dB unweighted.
CROSSTALK (ALL HOSTILE):	Video: −48dB @5MHz; Audio: −54dB @1MHz.
COUPLING:	Video: DC; Audio: AC.
AUDIO THD + NOISE:	0.065% @1kHz.
AUDIO 2ND HARMONIC:	0.002% @1kHz.
CONTROLS:	Front panel buttons, RS−485, RS−232, IR & Ethernet.
INDICATORS:	4−character display on the front panel.
POWER CONSUMPTION:	100−240V AC, 18VA max.
SHIPPING DIMENSIONS:	55.00cm x 27.60cm x 10.70cm (21.65" x 10.87" x 4.21" ) W, D, H
SHIPPING WEIGHT:	2.6kg (5.7lbs) approx.
INCLUDED ACCESSORIES:	Power cord, null−modem adapter, Windows®−based control software, rack "ears".
