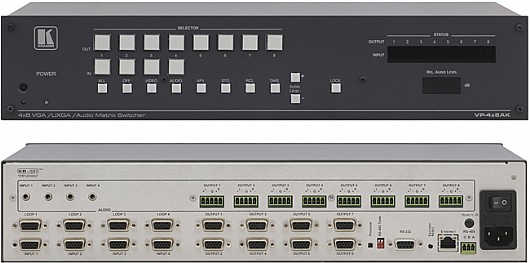

מטריצת Kramer VP-4x8AK- עם 4 כניסות VGA ל-8 יציאות VGA.

מאפיינים ושידרוגים:

מחיר ₪ 7,900 ILS 11/7/2027 In stock KRAMER ELECTRONICS VP-4x8AK VP-4x8AK

קנה עכשיו הוסף לסל

INPUTS:	4 UXGA with loop on 15−pin HD connectors, 4 unbalanced stereo audio 3.5mm mini jacks.
OUTPUTS:	8 UXGA on 15−pin HD connectors, 8 balanced stereo audio terminal block connectors.
MAX. OUTPUT LEVEL:	Video: 2.3Vpp, Audio: 3.2dBu.
BANDWIDTH (-3DB):	Video: 360MHz, Audio: 22kHz.
DIFF. GAIN:	0.05%.
DIFF. PHASE:	0.05Deg.
K-FACTOR:	<0.05%.
S/N RATIO:	Video: 66dB @5MHz, Audio: 82dB.
CROSSTALK (ALL HOSTILE):	Video: −52dB @5MHz, Audio: Bal: <−70dB @20kHz.
COUPLING:	Video: DC, Audio: AC.
AUDIO THD + NOISE:	0.24%.
AUDIO 2ND HARMONIC:	0.002%.
CONTROLS:	Input/output selector buttons, all, off, video, audio, AFV, store, recall, take audio level, and lock buttons; RS−232, RS−485, and Ethernet control; input and output level control, infrared.
INDICATORS:	multi−character displays on the front panel.
POWER CONSUMPTION:	100−240V AC, 19VA.
SHIPPING DIMENSIONS:	55.00cm x 29.40cm x 16.10cm (21.65" x 11.57" x 6.34" ) W, D, H
SHIPPING WEIGHT:	3.5kg (7.7lbs) approx.
INCLUDED ACCESSORIES:	Power cord, Windows® based control software, external remote IR receiver cable rack "ears".
