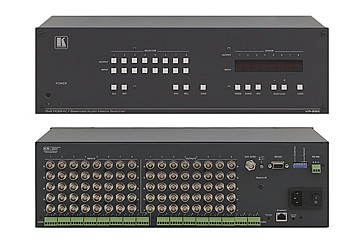

מטריצת Kramer VP-88K עם 8 כניסות RGBHV ל-8 יציאות RGBHV כולל אודיו סטריאו.

מאפיינים ושידרוגים:

מחיר ₪ 13,166 ILS 2027-10-09 In stock KRAMER ELECTRONICS VP-88K VP-88K

קנה עכשיו הוסף לסל

INPUTS:	8x3 RGB video, 0.7Vpp/75Ω on BNC connectors; 1 sync genlock with sync select switch, 1Vpp on a BNC connector; 8x2 Hs & Vs, TTL level/510Ω on BNC connectors; 8 balanced stereo audio, 2.2V @10kΩ on detachable terminal blocks.
OUTPUTS:	8x3 RGB video, 0.7Vpp/75Ω on BNC connectors; 8x2 Hs & Vs, TTL level/75Ω on BNC connectors; 8 balanced stereo audio, 2.2V @150Ω on detachable terminal blocks.
MAX. OUTPUT LEVEL:	Video: 2.4Vpp (RGB); Audio: 15Vpp @150Ω.
BANDWIDTH (-3DB):	Video: 350MHz, fully loaded; Audio: 22kHz.
S/N RATIO:	Video: 74dB; Audio: 81dB @1kHz.
CROSSTALK (ALL HOSTILE):	Video: –47dB @5MHz; Audio: <–57dB @20kHz.
DIFF. GAIN:	0.05%.
DIFF. PHASE:	0.05Deg.
CONTROLS:	Front panel buttons, RS−232, RS−485 or Ethernet.
AUDIO THD:	0.089% (1V, 1kHz).
POWER CONSUMPTION:	100−240V AC, 50/60Hz, 23VA.
SHIPPING DIMENSIONS:	55.00cm x 29.40cm x 20.00cm (21.65" x 11.57" x 7.87" ) W, D, H
SHIPPING WEIGHT:	5.3kg (11.6lbs) approx.
INCLUDED ACCESSORIES:	Power cord, Kramer's Windows®−based configuration software, Kramer's Windows®−based control software, rack "ears".
OPTIONS:	External remote IR receiver cable.
