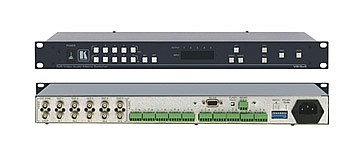

מטריצת Kramer VS-5x5 עם 5 כניסות CV ל-5 יציאות CV כולל אודיו סטריאו.

מאפיינים ושידרוגים:

מחיר ₪ 3,658 ILS 10/7/2027 In stock KRAMER ELECTRONICS VS-5x5 VS-5x5

קנה עכשיו הוסף לסל

INPUTS:	5 composite video, 1Vpp/75Ω on BNC connectors; 1 genlock with loop, 75Ω/Hi−Z on BNC connectors; 5 balanced stereo audio, +4dBu (nominal)/25kΩ on detachable terminal blocks.
OUTPUTS:	5 composite video, 1Vpp/75Ω on BNC connectors; 5 balanced stereo audio, +4dBu (nominal)/47Ω on detachable terminal blocks.
MAX. OUTPUT LEVEL:	Video: 2Vpp; Audio: +19dBu.
BANDWIDTH (-3DB):	Video: 70MHz, fully loaded; Audio: 29kHz.
DIFF. GAIN:	0.02%.
DIFF. PHASE:	0.44Deg.
K-FACTOR:	<0.05%.
S/N RATIO:	Video: 75.1dB; Audio: 74dB.
CROSSTALK (ALL HOSTILE):	Video: −51.4dB@ 5MHz; Audio: 105dB @1kHz.
COUPLING:	Video: DC; Audio: DC at input, AC at output.
AUDIO THD + NOISE:	0.102%.
AUDIO 2ND HARMONIC:	0.053%.
CONTROLS:	Audio gain level control by K−Router software, –91dB to +26dB; front panel buttons, RS−232, RS−485, IR.
INDICATORS:	5−character front panel display.
POWER CONSUMPTION:	90–264V AC, 50/60Hz, 18VA.
SHIPPING DIMENSIONS:	55.00cm x 27.60cm x 10.70cm (21.65" x 10.87" x 4.21" ) W, D, H
SHIPPING WEIGHT:	3.8kg (8.4lbs) approx.
INCLUDED ACCESSORIES:	Power cord, null−modem adapter, Windows®−based Kramer control software, infrared remote control transmitter.
