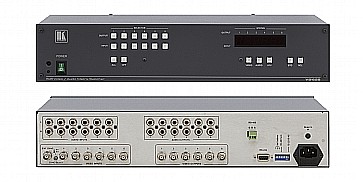

מטריצת Kramer VS-626 עם 6 כניסות CV ל-6 יציאות CV כולל אודיו סטריאו.

מאפיינים ושידרוגים:

מחיר ₪ 4,122 ILS 11/7/2027 In stock KRAMER ELECTRONICS VS-626 VS-626

קנה עכשיו הוסף לסל

INPUT:	6 composite video, 1Vpp/75Ω on BNC connectors; 1 sync/video genlock with sync select switch; 6 audio stereo up to +4dBu/62kΩ on RCA connectors.
OUTPUT:	6 composite video, 1Vpp/75Ω on BNC connectors; 6 audio stereo, +4dBu/50Ω on RCA connectors.
MAX. VIDEO OUTPUT LEVEL:	2Vpp.
MAX. AUDIO OUTPUT LEVEL:	+/−20Vpp.
VIDEO BANDWIDTH (-3DB):	100MHz.
AUDIO BANDWIDTH (-3DB):	100kHz.
DIFF. GAIN:	0.05%.
DIFF. PHASE:	0.03Deg.
K-FACTOR:	<0.05%
VIDEO S/N RATIO:	74dB.
AUDIO S/N RATIO:	88dB unweighted (1Vpp).
VIDEO CROSSTALK (ALL HOSTILE):	−50dB @5MHz.
AUDIO CROSSTALK (ALL HOSTILE):	–71.4dB @1kHz.
VIDEO COUPLING:	DC.
AUDIO COUPLING:	AC.
AUDIO THD + NOISE:	0.016% (1V, 1kHz).
AUDIO 2ND HARMONIC:	0.012%.
CONTROLS:	Manual, RS−232, RS−485, IR remote.
INDICATORS:	6−character front panel display.
POWER CONSUMPTION:	230V AC, 50/60Hz (115 VAC, USA), 17VA.
SHIPPING DIMENSIONS:	55.00cm x 29.40cm x 16.10cm (21.65" x 11.57" x 6.34" ) W, D, H
SHIPPING WEIGHT:	5.3kg (11.8lbs) approx.
INCLUDED ACCESSORIES:	Power cord, null−modem adapter, Windows®−based control software, IR remote, rack "ears".
