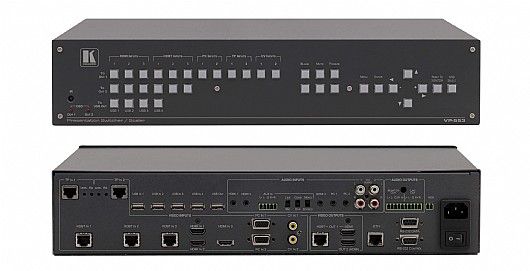

ממיר כניסות 16 ליציאה 3 HDMI Kramer VP-553 SCALER

INPUTS

• 3 HDMI connectors (HDMI, HDCP), 2 VGA on 15–pin HD connectors, 2 composite video on RCA connectors, 2 analog TP on RJ–45 connectors, 3 HDBT on RJ–45 connectors, 4 USB ports, 3 unbalanced analog audio on 3.5mm mini jacks for HDMI, 2 unbalanced analog audio on 3.5mm mini jacks for PC, 1 Aux in balanced stereo audio on 5–pin terminal block connectors, 2 balanced audio (L and R) RCA connectors for CV

OUTPUTS

• 1 HDBT on RJ–45 connector, 2 HDMI connectors (HDMI, HDCP), 1 USB port, 1 monitor out balanced stereo on a 5–pin terminal block connector, 1 line out balanced stereo on a 5–pin terminal block connector

OUTPUT RESOLUTIONS

• 640x48060
• 800x60060
• 1024x76860
• 1280x76860
• 1360x76860
• 1280x72060
• 1280x80060
• 1280x102460
• 1440x90060
• 1400x105060
• 1680x105060
• 1600x120060
• 1920x108060
• 1920x120060
• 720x480p60
• 1280x720p6050
• 1920x1080i6050
• 1920x1080p6050
• 720x576p60

CONTROLS

• TP 1, TP 2, CV 1, CV 2, HDBT 1, HDBT 2, HDBT 3, PC 1, PC 2, HDMI 1, HDMI 2, HDMI 3, USB 1, USB 2, USB 3, USB 4 input selector buttons
• 2 blank, 2 mute, 2 freeze buttons
• menu, enter, menu arrows, reset to XGA/720p, OSD SELECT, 2 RS–232, IR, Ethernet, 2 level and EQ trimmers, line/mic selector switch, cond/dyn selector switch, mono/stereo selector switch, REM for muting audio

POWER CONSUMPTION

• 100–240V AC, 43VA max

OPERATING TEMPERATURE

• 0° to +40°C (32° to 104°F)

STORAGE TEMPERATURE

• –40° to +70°C (–40° to 158°F)

HUMIDITY

• 10% to 90%, RHL non–condensing

INCLUDED ACCESSORIES

• Power cord, rack "ears", IR remote control

OPTIONS

• Kramer BC–HDKat6a cable

PRODUCT DIMENSION

• 19" x 11.93 x 2U (43.6cm x 30.30cm 8.80cm) W, D, H

PRODUCT WEIGHT

• 3.7kg (8.0lbs) approx

SHIPPING DIMENSION

• 52.60cm x 47.50cm x 18.40cm (20.71" x 18.70" x 7.24" ) W, D, H

SHIPPING WEIGHT

• 5.1kg (11.2lbs) approx
