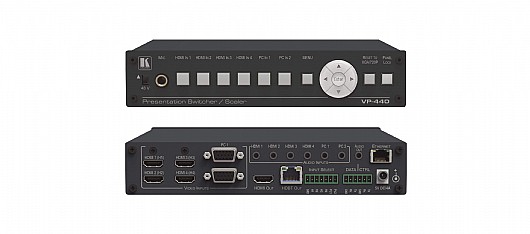

ממיר כניסות 6 ליציאה 2 HDMI Kramer VP-440 SCALER

INPUTS

• 4 HDMI connectors (HDMI, HDCP version 1.4)
• 2 VGA on a 15–pin HD connector
• 6 unbalanced stereo audio on 3.5mm mini jack connectors
• 1 mic on a 6.3mm jack connector (with selectable 48V phantom power)

OUTPUTS

• 1 HDMI connector (HDMI, HDCP version 1.4)
• 1 HDBT on a RJ–45 connector
• 1 unbalanced stereo audio on a 3.5mm mini jack connector

BANDWIDTH

• Up to 1080p, UXGA

SWITCHING TIME BETWEEN INPUTS

• 2 to 3 seconds

VIDEO LATENCY

• Less than 2 frames

INPUT RESOLUTIONS

• 640x4848
• 800x6060
• 1024x7676
• 1280x10728010729680
• 1920x10121012
• 1600x12901290
• 1440x9090
• 1366x7676
• 1400x1010
• 1680x1010

OUTPUT RESOLUTIONS

• 640x48
• 800x60
• 1024x76
• 1280x80107272
• 1360x76
• 1440x90
• 1400x10
• 1680x10
• 1600x12
• 1920x12101010
• 720x4857

CONTROLS

• HDMI 1 to HDMI 4 and PC 1 to PC 2 input selector buttons
• Input select contact closure
• Menu and navigation buttons
• Reset to XGA/720p and panel lock buttons
• RS–232 (control and data)
• Ethernet (OSD and Web pages)

POWER CONSUMPTION

• 5V DC, 3A

OPERATING TEMPERATURE

• 0° to +40°C (32° to 104°F)

STORAGE TEMPERATURE

• –40° to +70°C (–40° to 158°F)

HUMIDITY

• 10% to 90%, RHL non–condensing

INCLUDED ACCESSORIES

• Power supply

OPTIONS

• RK–1 rack adapter

PRODUCT DIMENSION

• 21.46cm x 16.30cm x 4.36cm (8.45" x 6.42" x 1.72" ) W, D, H

PRODUCT WEIGHT

• 1.5kg (3.4lbs) approx

SHIPPING DIMENSION

• 35.10cm x 21.20cm x 7.20cm (13.82" x 8.35" x 2.83" ) W, D, H

SHIPPING WEIGHT

• 1.1kg (2.4lbs) approx
