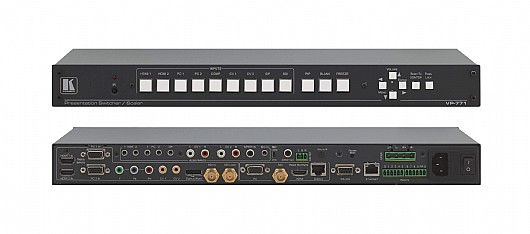

ממיר כניסות 9 ליציאה 4 Kramer VP-771 SCALER

INPUTS

• 2 HDMI (deep color) connectors,
• 2 VGA on 15–pin HD connectors,
• 1 component video on 3 RCA connectors,
• 2 composite video on RCA connectors,
• 1 DisplayPort connector,
• 1 SD/HD/3G HD–SDI plus loop a BNC connector,
• 2 HDMI, 2 VGA, 1 DP, 2 CV unbalanced stereo audio on 3.5mm mini jack connectors,
• 1 S/PDIF (for component video input) digital audio on an RCA connector,
• 1 mic on a 3.5mm mini jack connector

OUTPUTS

• 1 VGA on a 15–pin HD connector,
• 1 SD/HD/3G HD–SDI on a BNC connector,
• 1 HDMI (deep color) connector,
• 1 DGKat on an RJ–45 connector,
• 1 S/PDIF digital audio on an RCA connector,
• 1 unbalanced stereo audio on a 3–pin terminal block connector,
• 2x10W speaker amplifier balanced stereo audio on terminal block connectors

COMPLIANCE WITH STANDARDS

• Supports HDMI (deep color) and HDCP
• DisplayPort 1.1a

OUTPUT RESOLUTIONS

• 640x4806075
• 800x600506075
• 1024x768506075
• 1280x7685060
• 1280x80060
• 1280x1024506075
• 1360x76860
• 1366x7685060
• 1400x10505060
• 1600x90060
• 1600x12005060
• 1680x105060
• 1920x120060
• 2048x108060Hz50Hz

CONTROLS

• Front panel buttons, OSD, IR remote control, RS–232 on a 9–pin D–sub connector, Ethernet, contact closure

POWER CONSUMPTION

• 100–240V AC, 56VA max

OPERATING TEMPERATURE

• 0° to +40°C (32° to 104°F)

STORAGE TEMPERATURE

• –40° to +70°C (–49° to 158°F)

HUMIDITY

• 10% to 90%, RHL non–condensing

INCLUDED ACCESSORIES

• Power cord, rack “ears”, IR remote control

PRODUCT DIMENSION

• 19" x 9.34 x 1U (43.6cm x 23.72cm 4.36cm) W, D, H

PRODUCT WEIGHT

• 2.5kg (5.5lbs) approx

SHIPPING DIMENSION

• 52.50cm x 33.00cm x 10.70cm (20.67" x 12.99" x 4.21" ) W, D, H

SHIPPING WEIGHT

• 3.6kg (7.9lbs) approx
