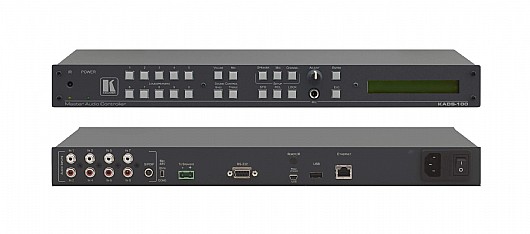

מערכת הפצת אודיו Kramer KADS-100 עם 10 כניסות ויציאה 1

• 1 mic on a 6.5mm phone jack (F), 8 analog stereo audio on RCA connectors, 1 S/PDIF audio on an RCA connector, 1 USB on a USB Type A connector

OUTPUTS

• 1 speaker on a 2–pin terminal block connector

PORTS

• 1 bidirectional RS–232 on a 9–pin D–sub connector, (for remote serial control or firmware upgrades), 1 prog/upgrade on a mini USB, (for firmware upgrades), 1 Ethernet on an RJ–45 TP connector

RS-232

• Baud rate: 115200bps, mode: full–duplex

USB FLASH-DRIVE

• Maximum 1Gb partition formatted as FAT32

MAXIMUM DISTANCE BETWEEN SPEAKERS

• 30m (100ft)

POWER CONSUMPTION

• 100–240V AC, 50/60Hz, 220VA

TRANSMISSION DISTANCE

• Up to 30m (100ft) on a two–wire twisted power cable

SUPPORTED WEB BROWSERS

• Windows 7 and higher: IE (32/64 bit) version 10, Firefox version 30, Chrome version 35
• MAC: Chrome version 35, Firefox version 27, Safari version 7
• Android OS: Chrome version 35
• IOS: Chrome version 35, Safari version 7

OPERATING TEMPERATURE

• 0° to +40°C (32° to 104°F)

STORAGE TEMPERATURE

• –40° to +70°C (–40° to 158°F)

HUMIDITY

• 10% to 90%, RHL non–condensing

COOLING

• Forced air, fan

ENCLOSURE TYPE

• Aluminum

RACK MOUNT

• With included rack “ears”

FURNITURE MOUNT

• With included rubber feet

VIBRATION

• ISTA 1A in carton (International Safe Transit Association)

SAFETY REGULATORY COMPLIANCE

• CE

ENVIRONMENTAL REGULATORY COMPLIANCE

• RoHs and WEEE

INCLUDED ACCESSORIES

• Power cord, remote control RC–IR3, 1 ferrite ring PN 2582–000021

PRODUCT DIMENSION

• 19" x 7.20 x 1U (43.6cm x 18.30cm 4.36cm) W, D, H

PRODUCT WEIGHT

• 2.4kg (5.2lbs) approx

SHIPPING DIMENSION

• 55.00cm x 27.60cm x 10.70cm (21.65" x 10.87" x 4.21" ) W, D, H

SHIPPING WEIGHT

• 3.2kg (7.1lbs) approx
