The WolfVision VZ-9.4L Visualizer system transform the way multimedia content can be handled during presentations. The VZ-9.4 Series come with integrated WLAN and audio, and feature onboard HD recording functionality that allows complete multimedia presentation and lecture content to be captured. The VZ-9.4L comes with a native WXGA/720p HD camera at 30fps - and Synchronized Lasermarkers for easy positioning of objects.
Unique Multimedia Presentations
VZ-9.4 Series Visualizers are a key central component option of our vSolution: a solution which offers a flexible combination of Visualizer hardware, software, and accessories - supporting more effective communication and collaboration, through advanced but easy-to-use presentation technology.
Lecture Capture Made Easy
The VZ-9.4L Visualizer feature onboard recording functionality that allows entire presentations and lectures to be captured including the audio.
They offer a quick and easy solution for in-house production of training videos or lecture capture. There's no necessity to set up a tripod, lights, microphones , or anything else. The VZ-9.4 Series Visualizers provide an impressive 'all-in-one' HD recording solution.
Creating Unique Multimedia presentations

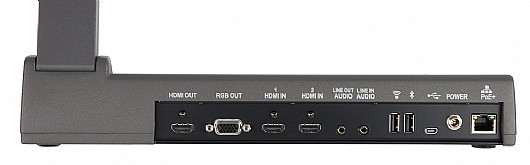

Recording functionality is not limited to the Visualizer's own camera and microphone. External content such as PowerPoint, digital images, webpages, PDF's, etc. from a PC or tablet connected to one of the Visualizer's HDMI In ports can be easily recorded together with voiceover audio in 720p HD resolution with a frame rate of up to 30 fps.
Built-in Microphone / Line in
A built-in microphone is provided for recording audio, and a line in also allows for external audio sources to be recorded if required.
Flexible Memory Options
Recorded videos and pictures can be saved to the 8GB internal memory which has enough capacity to store thousands of images, or an average of 10 hours of video footage (depending on the content). Alternatively, USB sticks or external hard drives can be used to provide extra storage space if required.
Wireless Connectivity
VZ-9.4 Series Visualizers come with a WLAN stick (on request, free of charge) which provides wireless connectivity using either 2.4GHz or 5GHz channels. This provides for quick and easy connection to wifi enabled smartphones or laptops, and also enables our vSolution Connect for iPad app to be used in combination with these units.
Efficient Knowledge Transfer via Streaming
VZ-9.4 Series Visualizers or connected WolfVision vSolution Link software can stream out video and audio to computers, tablets, or smartphones on the internal network or the internet using either H.264, Motion JPEG, or RTP Motion JPEG modes. An external device receiving the Visualizer's stream can also be used as a larger control monitor.
Snapshots / Email / Printing
We offer several possibilities for taking snapshots with the VZ-9.4L and emailing or printing them using WolfVision software components. This facilitates quick and convenient distribution of images during a presentation.
"Bring Your Own Device" - vSolution Connect
Synchronize your Visualizer with vSolution Connect, our powerful, innovative app with a full multimedia control dashboard. This unique app allows all media types to be integrated and controlled using a single device - enabling materials stored either locally on the iPad or in Dropbox to be seamlessly added into presentations.
Intuitive Positioning - Synchronized Lasermarkers

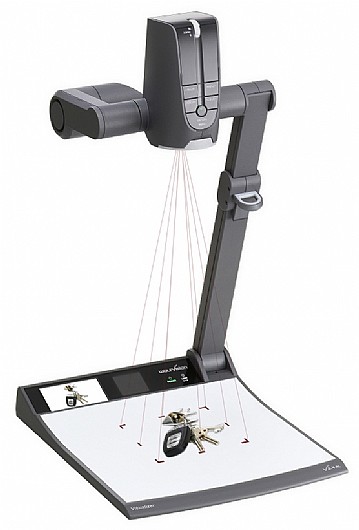

Positioning an object correctly on the Visualizer working surface whilst talking to an audience is not always easy! The VZ-9.4L is easier to operate than other Desktop Visualizers because its Synchronized Lasermarkers allow for simple 'one step' postitioning of objects. Small dots of laser light, projected from the camera head onto the working surface mark the 16:9 edges of the pickup area of the camera. The lasermarkers are synchronized with the camera and adjust accordingly when zooming in and out.
Easy to Use / Zoom Wheel
For basic operation, users only need to use the zoom wheel on top of the camera head (or the zoom keys on the remote control) as all other controls such as focus, brightness, etc., are adjusted automatically.
More Recording Options - Rotating Camera Head!
WolfVision's VZ-9.4 Series Visualizers can record almost anywhere in front of or behind the unit. The rotating camera head allows recordings to be made from virtually any angle, and high-grade mechanical components provide a stable mount for the camera, ensuring shake-free recordings in all camera positions.
Sometimes a different viewing angle than the normal working position is required. In such cases the Visualizer arm can be easily folded down as far as necessary enabling objects to be picked up from virtually any angle.
Write on your Visualizer!
Self-adhesive dry-erase working surfaces are available as optional accessory items. Once fixed to the working surface you can easily write and erase using suitable whiteboard markers and erasers. This enables the Visualizer to be used as a whiteboard or 'digital flipchart', and of course this handwritten material can also be included in recordings.
Energy Efficient (PoE+)
The LAN port provides Power over Ethernet Plus (PoE+), and is compatible with devices meeting the IEEE 802.3at standard. PoE+ is a popular way of saving on cables and installation costs.
