| Display Technology |
DLP™ Technology by Texas Instruments, 0.67” WUXGA, DC3,Type A chip |
| Native Resolution |
WUXGA 1920 x 1200 |
| Brightness1 (Bright Mode) |
8200 centre lens (8000 ANSI) lumens |
| Contrast |
2,000,000:1 ExtremeBlack enabled (2000:1 full on/off) |
| ANSI Contrast |
250:1 |
| Lamp Life2 Bright |
20,000 hours to 50% brightness** (hrs) |
| Lens Options |
A15-0.75-0.95
A01-0.95-1.22
A06-1.22-1.53
A03-1.52-2.92
A13- 2.90-5.50 |
| Throw Ratio 3 |
0.75 ~ 5.50 "lens dependent" |
| Zoom Type |
Motorised |
| Lens Shift |
Motorised lens shift, focus and zoom horizontal: +/-15% (typical; tolerance +/-4%) vertical: +/-50% (typical; tolerance +/-4%) |

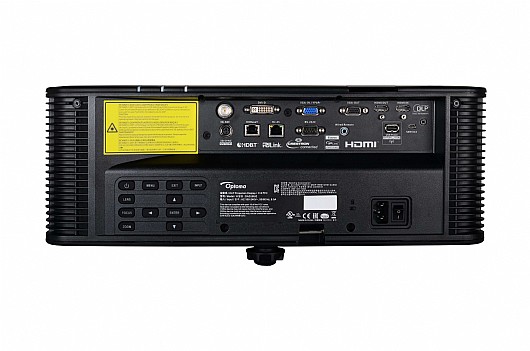

| I/O Connectors |
1 x HDMI, 1 x DVI-D, HDBaseT™, 1x SDI, Component Video, 1 x VGA, VGA Out, HDMI Out, RJ45, RS232, wired remote in, wired remote out, USB A |
| Keystone Correction |
V: +/- 20 degrees, H: +/- 20 degrees |
| Weight (kg) |
23 |
| Dimensions (W x D x H) (mm) |
484 x 509 x 185mm without lens |
| Aspect Ratio |
16:10 native, 16:9/4:3 compatible |
| Projection Screen Size |
Dependent upon lens |
| Projection Distance |
Dependent upon lens |
| Projection Lens |
Multiple lens options "no lens supplied as standard" |
| Uniformity |
90% |
| Maximum Resolution |
Native WUXGA (1920 x 1200) |
| Computer Compatibility |
WUXGA, HD, UXGA, WXGA, SXGA+, SXGA, XGA, SVGA, VGA Resized, VESA, PC and Macintosh Compatible |
| Video Compatibility |
PAL (625/576i/p), SECAM, NTSC (525/480i/p), HDTV (720p, 1080i/1080p) |
| 3D Support |
Full 3D - The 3D features of Optoma projectors can only be used with compatible 3D content. Typical applications include use with 3D educational or 3D design and modelling systems. 3D TV broadcast systems, (SKY in the UK), Blu-ray 3D™ and 3D games from the Sony® PS3 or Microsoft® Xbox 360 are now supported as part of the HDMI v1.4a specification. |
| 3D Compatibility |
Side-by-Side:1080i50 / 60, 720p50 / 60
Frame-pack: 1080p24, 720p50 / 60
Over-Under: 1080p24, 720p50 / 60 |
| Horizontal Scan Rate |
15kHz to 100kHz |
| Vertical Scan Rate |
25Hz to 85Hz |
| Displayable Colours |
16.7 million |
| Noise Level (Eco mode) |
32db |
| Power Supply |
100 – 240V AC @ 50 – 60Hz |
| Power Consumption |
770W+/-15%@ 110VAC in Normal brightness Mode/ 395W+/-15%@ 110VAC in ECO brightness Mode |
| Lamp Type |
Laser Phosphor |
| Operating Conditions |
5~40°C (>35°C, auto dim to 75% normal mode), 10~85%RH, non-condensing |
| Operating Temperature |
for 0 ~ 2500 ft, 5 ~ 40°C
for 2500 ~ 5000 ft, 5 ~ 35°C
for 5000 ~ 10000 ft, 5 ~ 30°C |
| Heat Dissipation |
2625.7BTU/hr (Normal mode)
1346.95BTU/hr(ECO mode) |
| Security |
4-digit PIN code, Kensington lock port, security bar |
| On Screen Display |
18 languages: English, German, French, Italian, Spanish, Portuguese, Polish, Dutch, Russian, Finnish, Swedish,Greek, Norwegian/Danish, Hungarian, Czech |
| Remote Control |
Infra-red remote control, wired connection |
| Standard Accessories |
VGA cable, AC power cord, Infra-red remote control, 2 x batteries, user manual CD, quick start card, WEEE card, warranty card |
| Optional Wireless |
No |
| 360’ Operation |
Yes |
| Portrait Mode |
Yes |
