Display system 3 LCD system
Display device
Size of effective display area 0.59” (15 mm) x 3 BrightEra LCD Panel, Aspect ratio: 16:10
Number of pixels 3,072,000 (1280 x 800 x 3) pixels
Projection lens
Focus Manual
Throw ratio 0.46:1
Light source
Type Ultra high pressure mercury lamp
Wattage 210 W type
Recommended lamp replacement time*1
Lamp mode: High 4000 H
Lamp mode: Standard 6000 H
Lamp mode: Low 10000 H
Filter cleaning / replacement cycle (Max.)*1
Filter cleaning / replacement cycle (Max.) 7000 H
Screen size
Screen size 57” to 103” (1.45 m to 2.62 m) (measured diagonally)
Light output
Lamp mode: High 2600 lm
Lamp mode: Standard 2100 lm
Lamp mode: Low 1700 lm
Color light output
Lamp mode: High 2600 lm
Lamp mode: Standard 2100 lm
Lamp mode: Low 1700 lm
Contrast ratio (full white / full black)*2
Contrast ratio (full white / full black) 2000:1
Speaker
Speaker 16 W x 1 (monaural)
Displayable scanning frequency
Horizontal 14 kHz to 93 kHz
Vertical 47 Hz to 93 Hz
Display resolution
Computer signal input Maximum display resolution: UXGA 1600 x 1200 dots*3
Video signal input NTSC, PAL, SECAM, 480/60i, 576/50i, 480/60p, 576/50p, 720/60p, 720/50p, 1080/60i, 1080/50i, The following items are available for digital signal (HDMI input) only; 1080/60p, 1080/50p
Color system
Color system NTSC3.58, PAL, SECAM, NTSC4.43, PAL-M, PAL-N
Keystone correction (Max.)
Vertical +/- 7.5 degrees
OSD language
OSD language 24-languages (English, Dutch, French, Italian, German, Spanish, Portuguese, Turkish, Polish, Russian, Swedish, Norwegian, Japanese, Simplified Chinese, Traditional Chinese, Korean, Thai, Vietnamese, Arabic, Farsi, Finnish, Indonesian, Hungarian, Greek)

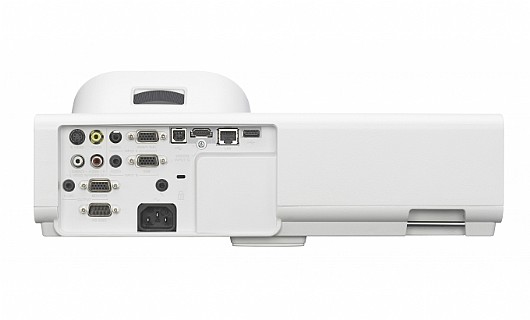

INPUT OUTPUT (Computer/Video/Control)
INPUT A RGB / Y PB PR input connector: Mini D-sub 15-pin (female)
Audio input connector: Stereo mini jack
INPUT B RGB input connector: Mini D-sub 15-pin (female)
Audio input connector: Stereo mini jack
INPUT C HDMI input connector: HDMI 19-pin, HDCP support
S VIDEO IN S video input connector: Mini DIN 4-pin
Audio input connector: Pin jack (x2) (shared with VIDEO IN)
VIDEO IN Video input connector: Pin jack
Audio input connector: Pin jack (x2) (shared with S VIDEO IN)
OUTPUT Monitor output connector*4: Mini D-sub 15-pin (female)
Audio output connector*5: Stereo mini jack (variable out)
REMOTE RS-232C connector: D-sub 9-pin (female)
LAN RJ-45, 10BASE-T/100BASE-TX
USB Type-A
USB Type-B
MICROPHONE IN Microphone input: Mini Jack
Acoustic noise
Lamp mode: Low 30 dB
Operating temperature / Operating humidity
Operating temperature / Operating humidity 0°C to 40°C (32°F to 104°F) / 20% to 80% (no condensation)
Storage temperature / Storage humidity
Storage temperature / Storage humidity -10°C to +60°C (14°F to +140°F) / 20% to 80% (no condensation)
Power requirements
Power requirements AC 100 V to 240 V, 3.2 A to 1.3 A, 50 Hz / 60 Hz
Power consumption
AC 100 V to 120 V Lamp mode: High: 291 W
AC 100 V to 120 V Lamp mode: High: 281 W
Power Consumption (Standby Mode)
AC 100 V to 120 V 0.5 W (when “Standby mode” is set to “Low”)
AC 220 V to 240 V 0.5 W (when “Standby mode” is set to “Low”)
Power Consumption (Networked Standby Mode)
AC 100 V to 120 V 5.0 W (LAN)
5.6 W (optional WLAN module)
5.8 W (All Terminals and Networks Connected) (when "Standby Mode" is set to "Standard")
AC 220 V to 240 V 5.3 W (LAN)
5.9 W (optional WLAN module)
6.0 W (All Terminals and Networks Connected) (when "Standby Mode" is set to "Standard")
Standby Mode / Networked Standby Mode Activated
Standby Mode / Networked Standby Mode Activated After about 10 Minutes
Wireless Network(s) On/Off Switch
Wireless Network(s) On/Off Switch 1) Press the MENU button, then select [Connection/Power]
2) [WLAN Settings]
3) [WLAN Connection]
4) Select On or Off
Heat dissipation
AC 100 V to 120 V 993 BTU/h
AC 220 V to 240 V 959 BTU/h
Dimensions (W x H x D)
Dimensions (W x H x D) (without protrusions) Approx. 365 x 138.7 x 310 mm (14 3/8 x 5 15/32 x 12 7/32 inches)
Mass
Mass Approx. 4.4 kg (9 lb)
Supplied accessories
Remote commander RM-PJ8
Optional accessories
Replacement lamp LMP-E212
Wireless LAN Module IFU-WLM3
