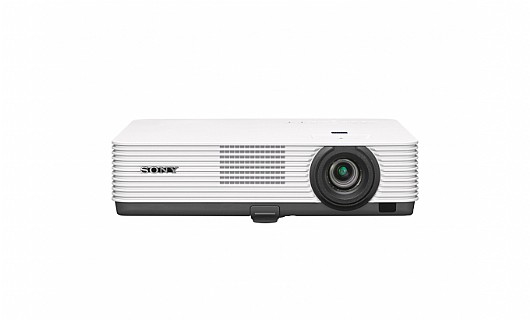

Display System 3 LCD system
Display device
Size of effective display area 0.63"(16mm) x 3
Aspect ratio: 4:3
Number of pixels 2,359,296 (1024x768 x 3) pixels
Projection lens
Zoom Optical: Manual (Approx. x 1.2)
Focus Manual
Throw Ratio 1.47:1 to 1.77:1
Light source
Type Ultra high pressure mercury lamp 215 W
Recommended lamp replacement time *1
Lamp mode: High / Standard / Low 3000 H / 5000 H / 6000 H
Filter cleaning cycle*1
Filter cleaning cycle Max. 1000 H
Screen size
Screen size 30” to 300” (0.76 m to 7.62 m)
Light output*2
Lamp mode: High / Standard / Low 2700 lm / 2000 lm / 1700 lm
Color light output*2
Lamp mode: High / Standard / Low 2700 lm / 2000 lm / 1700 lm
Contrast ratio (full white / full black)*3
Contrast ratio (full white / full black) 3000:1
Displayable scanning frequency
Horizontal 19 kHz to 92 kHz
Vertical 48 Hz to 92 Hz
Display resolution
Computer signal input Maximum display resolution: UXGA 1600 x 1200 dots*4
Panel display resolution: 1024 x 768 dots
Video signal input NTSC, PAL, SECAM, 480/60i, 576/50i, 480/60p, 576/50p, 720/60p, 720/50p, 1080/60i, 1080/50i,
The following items are available for digital signal (HDMI input) only. 1080/60p, 1080/50p
Color system
Color system NTSC3.58, PAL, SECAM, NTSC4.43, PAL-M, PAL-N
Keystone correction
Keystone correction Max. Vertical: +/- 30 degrees
OSD language
OSD language 27-languages (English, Dutch, French, Italian, German, Spanish, Portuguese, Turkish, Polish, Russian, Swedish, Norwegian, Japanese, Simplified Chinese, Traditional Chinese, Korean, Thai, Vietnamese, Arabic, Farsi, Finnish, Indonesian, Hungarian, Greek, Czech, Slovak, Romanian)
Computer and video signal input/output
INPUT A RGB / Y PB PR input connector: Mini D-sub 15-pin (female)
INPUT B HDMI input connector: HDMI 19-pin, HDCP support, audio support
VIDEO IN Video input connector: Phono jack
OUTPUT Audio output connector: Stereo mini jack
Speaker
Speaker 1 W x 1 (monaural)
Operating temperature (Operating humidity)
Operating temperature (Operating humidity) 0°C to 35°C / 32°F to 95°F (20% to 80%; no condensation)
Storage temperature (Storage humidity)
Storage temperature (Storage humidity) -10°C to +60°C / 14°F to +140°F (20% to 80%; no condensation)
Outside dimensions*3
Outside dimensions W 325.1 x H 79.8 x D 230.5 mm (W 12 13/16 x H 3 5/32 x D 9 1/16 inches) (without protrusions)
Mass*3
Mass 2.7 kg / 5.9 lb
