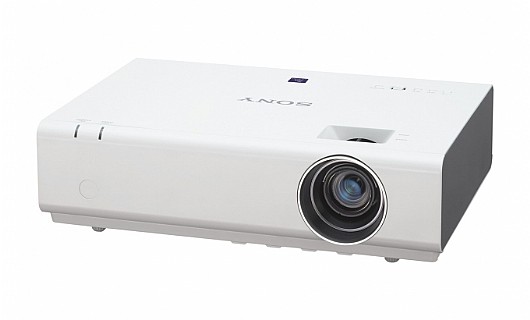

מקרן נייד משרדי SONY VPL EX 345 XGA 4200 Lumens

Display System
Display System    3 LCD system
Display device
Size of effective display area    0.63” (16 mm) x 3 BrightEra LCD Panel, Aspect ratio: 4:3
Number of pixels    2,359,296 (1024x768 x 3) pixels
Projection lens
Focus    Manual
Zoom - Powered/Manual    Manual
Zoom - Ratio    Approx. x 1.6
Throw Ratio    1.40:1 to 2.27:1
Light source
Type    Ultra high pressure mercury lamp
Wattage    225 W type
Recommended lamp replacement time *1
Lamp mode: High    4000 H
Lamp mode: Standard    6000 H
Lamp mode: Low    10000 H
Filter cleaning / replacement cycle (Max.)
Filter cleaning / replacement cycle (Max.)    10,000 H
Screen size
Screen size    30" to 300"(0.76 m to 7.62 m) (measured diagonally)
Light output
Lamp mode: High    4200 lm
Lamp mode: Standard *2    3200 lm
Lamp mode: Low *2    2500 lm
Color light output
Lamp mode: High    4200 lm
Lamp mode: Standard *2    3200 lm
Lamp mode: Low *2    2500 lm
Contrast ratio (full white / full black) *3
Contrast ratio (full white / full black)    3300:1
Speaker
Speaker    16 W (monaural)
Displayable scanning frequency
Horizontal    15 kHz to 92 kHz
Vertical    48 Hz to 92 Hz
Display resolution
Computer signal input    Maiximum display resolution: 1600 x 1200 dots *4
Video signal input    NTSC, PAL, SECAM, 480/60i, 576/50i, 480/60p, 575/50p, 720/60p, 720/50p, 1080/60i, 1080/50i, 1080/60p, 1080/50p
Color system
Color system    NTSC3.58, PAL, SECAM, NTSC4.43, PAL-M, PAL-N, PAL-60
Keystone correction (Max.) *4
Vertical    +/-30 degrees
OSD languages
OSD languages    27-languages (English, French, German, Italian, Spanish, Portuguese, Japanese, Simplified Chinese, Traditional Chinese, Korean, Russian, Dutch, Norwegian, Swedish, Thai, Arabic,Turkish, Polish, Vietnamese, Farsi, Finnish, Indonesian, Hungary, Greek, Czech, Slovakia, Romania)
INPUT OUTPUT (Computer/Video/Control)
INPUT A    RGB / Y PB PR input connector: Mini D-sub 15-pin (female)
Audio input connector: Stereo mini jack
INPUT B    RGB input connector: Mini D-sub 15-pin (female)
Audio input connector: Stereo mini jack
INPUT C    HDMI input connector: HDMI 19-pin, HDCP support
Audio input connector: HDMI audio support
INPUT D    HDMI input connector: HDMI 19-pin, HDCP support
Audio input connector: HDMI audio support
S VIDEO IN    S Video input connector: Mini DIN 4-pin
VIDEO IN    Video input connector: Phono jack
OUTPUT    MONITOR output connector *5: Mini D-sub 15-pin (female)
Audio output connector *6: Stereo mini
REMOTE    RS-232C connector: D-sub 9-pin (male)
LAN    RJ-45, 10BASE-T/100BASE-TX
USB    Type-A
USB    Type-B
MICROPHONE IN    Microphone input: Mini Jack
Acoustic noise *5
Lamp mode: Low    29 dB
Operating temperature / Operating humidity
Operating temperature / Operating humidity    0°C to 40°C (32°F to 104°F) / 20-80% (no condensation)
Storage temperature / Storage humidity
Storage temperature / Storage humidity    -10 °C to +60°C (-4°F to +140°F) / 20% to 80% (no condensation)
Power requirements
Power requirements    AC 100 V to 240 V, 3.4 A to 1.5 A, 50 Hz / 60 Hz
Power consumption
AC 100 V to 120 V    Lamp mode: High: 336 W
AC 220 V to 240 V    Lamp mode: High: 324 W
Power Consumption (Standby Mode)
AC 100 V to 120 V    0.5 W (when “Standby mode” is set to “Low”)
AC 220 V to 240 V    0.5 W (when “Standby mode” is set to “Low”)
Power Consumption (Networked Standby Mode)
AC 100 V to 120 V    5.3 W (LAN)
5.7 W (optional WLAN module)
6.0 W (All Terminals and Networks Connected) (when "Standby Mode" is set to "Standard")
AC 220 V to 240 V    5.5 W (LAN)
6.0 W (optional WLAN module)
6.3 W (All Terminals and Networks Connected) (when "Standby Mode" is set to "Standard")
Standby Mode/Network Standby Mode Activated
Standby Mode/Network Standby Mode Activated    Approx. 10 Minutes
Wireless Network(s) On/Off Switch
Wireless Network(s) On/Off Switch    1) Press the MENU button, then select [Connection/Power]
2) [WLAN Settings]
3) [WLAN Connection]
4) Select On or Off
Heat dissipation
AC 100 V to 120 V    1146 BTU/h
AC 220 V to 240 V    1105 BTU/h
Dimensions (W x H x D)
Dimensions (W x H x D) (without protrusions)    Aprox. 365 x 96.2 x 252 mm (14 3/8 X3 25/32 X9 29/32 ”)
Mass
Mass    Approx. 4 kg (8 lb)
Supplied accessories
Remote commander    RM-PJ8
Optional Accessories
Optional Lamp    LMP-E221
Wireless LAN module    IFU-WLM3
