Specifications Projector:
Projection System:3LCD, 3-chip technology
Projection Method:Front / rear / ceiling mount
Driving Method:Poly-silicon TFT Active Matrix
Pixel Number:1,024,000 dots (1280 x 800) x 3
Color Brightness - Color Light Output:3800 lumens
White Brightness - White Light Output:3800 lumens
Aspect Ratio:16:10Resolution:1280 x 800 (WXGA)
Resize:640 x 480 (VGA), 800 x 600 (SVGA), 1024 x 768 (XGA), 1280 x 960 (SXGA2), 1280 x 1024 (SXGA3), 1366 x 768 (WXGA60-3), 1400 x 1050 (SXGA+), 1440 x 900 (WXGA+), 1680 x 900 (WXGA++), 1600 x 1200 (UXGA60)
Lamp Type:210 W UHE
Lamp Life:
ECO mode: Up to 12,000 hours3
Normal mode: Up to 6,000 hours3
Throw Ratio Range:1.38 (Zoom:Wide), 2.24 (Zoom:Tele)
Size - projected distance:29" – 280" (0.74 – 7.11 m) (Zoom:Wide)
Keystone Correction:
Vertical: ±30 degrees (Automatic)
Horizontal: ±30 degrees(Slider)
USB Plug 'n Play:Projector is compatible with PC and Mac® computers
Contrast Ratio:Up to 15000:1
Color Processing:10 bit
Color Reproduction:Up to 1.07 billion colors
General:
Temperature:41° to 95° F (5° to 35° C)
Weight:6.83 lb (3.1 kg)
Security:
Kensington®-style lock provision
Padlock
Security anchor bar
Power:
Power Supply Voltage:100 – 240VAC ±10%, 50 / 60Hz AC
Power Consumption:
ECO mode: 237 W
Normal mode: 326 W
Communication on: 2.0 W Standby
Communication off: 0.2 W Standby
Projection Lens:
Type:Manual focus
F-number:1.51 – 1.99
Focal Length:18.2 mm – 29.2 mm
Zoom Ratio:1.0 – 1.6
Remote Control:
Features:A/V Mute, Freeze, Split, Aspect, Color Mode, Auto, MHL Menu, Volume
Operating Distance:19.7' (6 m)
Operating Angle:
Right / Left: ±30 degrees
Upper / Lower: ±15 degrees
Projector Dimensions:
Including feet:12.1" x 11.5" x 4.1" (W x D x H)
Excluding feet:12.1" x 11.5" x 3.5" (W x D x H)
Projector Details:
Display Performance:
NTSC: 480 lines
PAL: 576 lines
ation of the multi-burst pattern)
Input Signal:NTSC / NTSC4.43 / PAL / M-PAL / N-PAL / PAL60 / SECAM

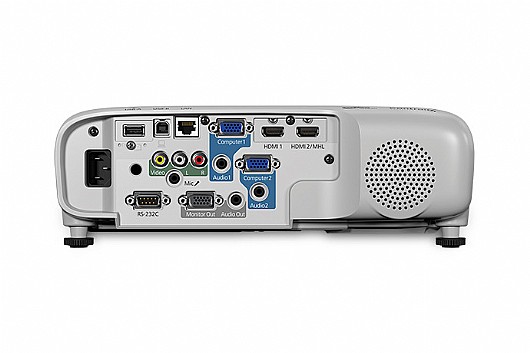

Interfaces:
USB-A x 1
USB-B x 1
LAN x 1
HDMI x 1
HDMI/MHL® x 1
Computer/Component x 2
Video x 1
RS-232c x 1
Mic: Stereo Mini-jack 1
Monitor Out x 1
Audio 1 & 2
Audio L & R
Audio Out x 1
Wireless LAN port: 802.11 b/g/n (optional – module sold separately)
Speaker:16 W (mono)
Fan Noise:
ECO mode: 28 dB
Normal mode: 37 dB
