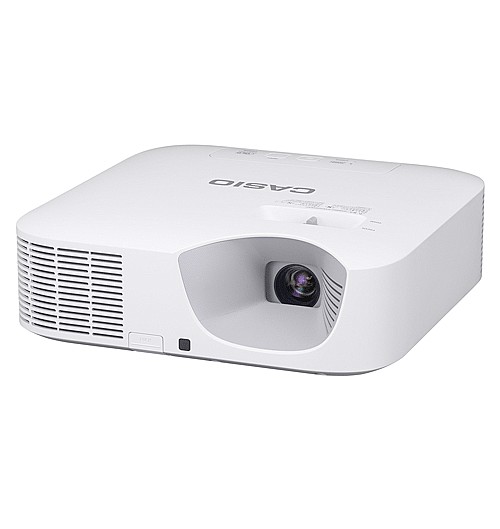

XJ-F100W
570 Mt. Pleasant Avenue, Dover, New Jersey 07801
TEL
973-361-5400
FAX
973-537-8979
www.casioLampFree.com
PJ-058-01
WXGA
Native Resolution
1280 x 800
Native Aspect Ratio
16:10
Brightness
3500 lumens
Display Device
0.65 -inch DLP® chip
Contrast Ratio
20,000:1
Lens Type
1.5X Manual Zoom & Focus
Lens Offset
33%
Light Source
Laser & LED
Estimated Light Source Life
Up to 20,000 Hours
Screen Size (Min-Max)
35 to 300-inch diagonal
Projection Range
—
60-inch screen
5.4 ~ 7.9 ft
100-inch screen
9.2 ~ 13.5 ft
Minimum Throw Distance
3.0 ft
Throw Ratio
1.32-1.93:1
Keystone Correction
Vertical +30° (Auto) Vertical + or - 30° (Manual)
Color Reproduction
Full color (up to 1.07 billion colors)
Power Source
AC100~240V, 50/60Hz
Power Consumption
Operating
205 W - light control “off” Bright selected
165 W - light control “on” and “Light Output 7” selected
Standby
0.12 W
TERMINAL CONNECTIVITY
Video Signal Compatibility
Video Systems
NTSC/ PAL/ PAL-N/ PAL-M/ PAL60/ SECAM
DTV/HDTV
480i/480p/576i/576p/720p/1080i/1080p
Maximum Computer Input
WUXGA (1920 x 1200) *Reduced blanking signal
INPUTS
RGB/Component Video Input
mini D-Sub 15 pin x 1 (Also use as YCbCr/YPbPr input— commercially
available adapter required)
HDMI
HDMI Type A x 2, HDCP and audio support
Composite Video
Composite Video (RCA) x 1, S-Video
Audio
RCA (R/L) x 1, 3.5mm stereo mini jack x 1
USB Power Supply
Yes, DC 5V 2A
USB Input (Host)
No
USB Display
No
Logo Transfer
Micro B(USB1.1) x1
Built-in Memory
No
Wireless Capability
No
OUTPUTS
Audio
3.5mm Stereo Mini Jack x 1 (variable audio)
AUDIO AND CONTROL SYSTEMS
Audio system
16W Monaural Speaker
Control Terminal
—
RS-232
RS-232C (D sub 9 pin) x 1, Cross Cable (Null Modem) required
LAN
No
Control System Compatibility
No
