î÷øï Maxell MC-EX303E 3300L XGA 1024x768

Projection Technology 3LCD, 3 chip technology

Resolution XGA – 1024 x 768

White Light Output 3,300 ANSI lumens

Color Light Output 3,300 ANSI lumens

Colors 16.7 million colors

Aspect Ratio Native 4:3 and 16:9 / 16:10 / 14:9 zoom compatible

Contrast Ratio 20,000 : 1 (using active IRIS)

Throw Ratio (distance : width) 1.5 – 1.8 : 1

Focus Distance 33" – 427"

Display Size 30" – 300"

Lens f = 19 – 23 mm, x 1.2 manual zoom and focus

Lamp Wattage 230W

Expected Lamp Life* Approximately 6,000 hours (standard mode) 12,500 hours (eco mode)

Expected Filter Life** Approximately 10,000 hours

Speaker Output 1W

Keystone V: +/- 30°

Computer VGA, SVGA, XGA, WXGA/SXGA/SXGA+/HD/UXGA (compressed), Mac 16"

H-Sync 15 kHz – 106 kHz

V-Sync 50 Hz – 120 Hz

Composite Video NTSC, NTSC4.43, PAL, PAL-M, -N, SECAM

Component Video 480i, 480p, 576i, 576p, 720p, 1080i, 1080p

HDMI 480i, 480p, 576i, 576p, 720p, 1080i, 1080p Computer signal TMDS clock 25 MHz – 162 MHz

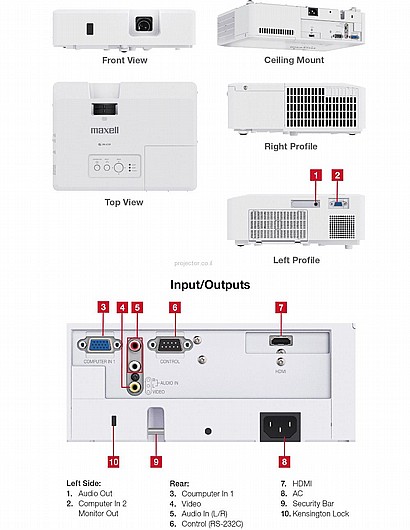

Digital Input HDMI x 1 (HDCP compliant)

Computer Input 1 15-pin mini D-sub x 1 (shared with analog component video input)

Computer Input 2 15-pin mini D-sub x 1 (shared with analog component video input and monitor out)

Computer Monitor Output 15-pin mini D-sub x 1 (shared with computer in 2 and analog component video input 2)

Composite Video Input RCA jack x 1

Component Video Input 15-pin mini D-sub x 2 (shared with computer in 1, in 2/monitor out)

Audio Input RCA jack (L/R) x 1

Audio Output 3.5mm stereo mini jack x 1

Network (LAN) Wired N/A

Network (LAN) Wireless N/A

USB N/A

Control Terminals 9-pin D-sub x 1 (RS-232 control)

Power Supply AC100-120V / AC220-240V, 50/60Hz

Power Consumption 290W / 280W

Operating Temperature 32°F – 95°F (0°C – 35°C)

Dimensions (W x D x H) 13.7" x 10.4" x 3.5" (excluding protrusions)

Weight Approximately 7.7 lbs.

Approvals UL 60950-1 / cUL, FCC Part 15 subpart B class B
