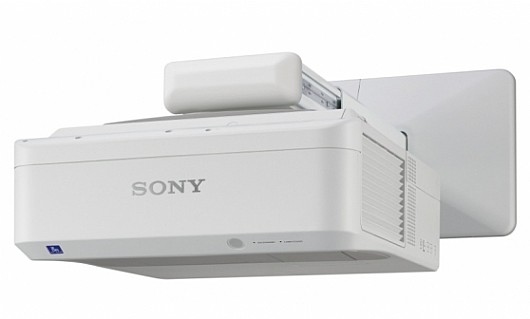

מקרן אינטראקטיבי לטווח קצר SONY VPLSX536 XGA 3000 Lumens

מקרן: סוני,
דגם: VPL-SX536 ,
רזולוציה טבעית : 1024X768 XGA ,
עוצמת הארה : 3000 ANSI LUMENS,
יחס ניגודיות: 2500:1 ,
משקל 6.9 ק"ג,
טכנולוגיית הקרנה: LCD projection system

חבילה מומלצת

צרו קשר

תיאור מוצר

חוות דעת

מאפיינים ושידרוגים:

פרטים נוספים:

  • אחריות: 12 חודשים
  • זמן אספקה: עד3ימי עסקים
  • דגם: Sony VPL-SX536

מחיר   ₪ 5,645 ILS 10/7/2027 In stock SONY Sony VPL-SX536 Sony VPL-SX536

קנה עכשיו הוסף לסל
  • +
  • -
visaisracardmastercarddinersamerican express
  • יבואן רשמי

Display System

Display System 3 LCD system

Display device

Size of effective display area 0.63” (16.0 mm) x 3 BrightEra LCD Panel, Aspect ratio: 4:3
Number of pixels 2,359,296 (1024 x 768 x 3) pixels

Projection lens

Focus Manual
Zoom - Powered/Manual Manual
Zoom - Ratio Approx. x 1.05
Throw Ratio 0.34:1 to 0.36:1
Lens shift - Powered/Manual Manual
Lens shift - Range Vertical +/- 4%
Lens shift - Range Horizontal +/- 3%

Light source

Type Ultra high pressure mercury lamp
Wattage 210 W type

Recommended lamp replacement time *1

Lamp mode: High 3000 H
Lamp mode: Standard 4500 H
Lamp mode: Low 6000 H

Filter cleaning / replacement cycle (Max.) *1

Filter cleaning / replacement cycle (Max.) 6000 H (Cleaning) Same time as the lamp replacement is recommended

Screen size

Screen size 60” to 110” (1.52 m to 2.79m) (measured diagonally)

Light output

Lamp mode: High 3000 lm
Lamp mode: Standard 2400 lm
Lamp mode: Low 2000 lm

Color light output

Lamp mode: High 3000 lm
Lamp mode: Standard 2400 lm
Lamp mode: Low 2000 lm

Contrast ratio (full white / full black) *2

Contrast ratio (full white / full black) *2 2500:1

Speaker

Speaker 16 W x 1 (monaural)

Displayable scanning frequency

Horizontal 15 kHz to 92 kHz
Vertical 48 Hz to 92 Hz

Display resolution

Computer signal input Maximum display resolution: UXGA 1600 x 1200 dots*3
Video signal input NTSC, PAL, SECAM, 480/60i, 576/50i, 480/60p, 576/50p, 720/60p, 720/50p, 1080/60i, 1080/50i, The following items are available for digital signal (HDMI input) only;1080/60p,1080/50p

Color system

Color system NTSC3.58, PAL, SECAM, NTSC4.43, PAL-M, PAL-N

Keystone correction (Max.)

Vertical +/- 5 degrees

OSD language

OSD language 24-languages (English, Dutch, French, Italian, German, Spanish, Portuguese, Turkish, Polish, Russian, Swedish, Norwegian, Japanese, Simplified Chinese, Traditional Chinese, Korean, Thai, Vietnamese, Arabic, Farci, Finnish, Indonesian, Hungarian, Greek)

INPUT OUTPUT (Computer/Video/Control)

INPUT A RGB / Y PB PR input connector: Mini D-sub 15-pin (female)
Audio input connector: Streo mini jack
INPUT B RGB input connector: Mini D-sub 15-pin (female)
Audio input connector: Stereo mini jack
INPUT C HDMI input connector: HDMI 19-pin, HDCP support
S VIDEO IN S Video input connector: Mini DIN 4-pin
Audio input connector: Pin jack x2 (shared with VIDEO IN)
VIDEO IN Video input connector: pin jack, Audio input connector: Pin jack x2 (shared with S VIDEO IN)
OUTPUT Monitor output connector*4: Mini D-sub 15-pin (female)
Audio output connector*5: Stereo mini jack (variable out)
REMOTE RS-232C connector: D-sub 9-pin (male)
LAN RJ-45, 10BASE-T/100BASE-TX
USB Type-A
USB Type-B
MICROPHONE IN Microphone input: Mini jack

Acoustic noise

Lamp mode: Low 28 dB

Operating temperature / Operating humidity

Operating temperature / Operating humidity 0°C to 40°C (32°F to 104°F) / 35% to 85%（no condensation)

Storage temperature / Storage humidity

Storage temperature / Storage humidity -20°C to +60°C (-4°F to +140°F) / 10% to 90% (no condensation)

Power requirements

Power requirements AC 100 V to 240 V, 3.0 A to 1.3 A, 50 Hz / 60 Hz

Power consumption

AC 100 V to 120 V Lamp mode : High : 306 W
AC 220 V to 240 V Lamp mode : High : 296 W

Standby mode power consumption

AC 100 V to 120 V 0.5 W (when “Standby mode” is set to “Low”)
AC 220 V to 240 V 0.5 W (when “Standby mode” is set to “Low”)

Power Consumption (Networked Standby Mode)

AC 100 V to 120 V 5.4 W (LAN)
5.7 W (optional WLAN module)
5.6 W (ALL Terminals and Networks Connected, when "Standby Mode" is set to "Standard")
AC 220 V to 240 V 5.4 W (LAN)
5.7 W (optional WLAN module)
5.6 W (ALL Terminals and Networks Connected, when "Standby Mode" is set to "Standard")

Standby Mode / Networked Standby Mode Activated

Standby Mode / Networked Standby Mode Activated After about 10 Minutes

Wireless Network(s) On/Off Switch

Wireless Network(s) On/Off Switch 1) Press the MENU button, then select [Connection/Power]
2) [WLAN Settings]
3) [WLAN Connection]
4) Select On or Off

Heat dissipation

AC 100 V to 120 V 1044 BTU/h
AC 220 V to 240 V 1010 BTU/h

Dimensions (W x H x D)

Dimensions (W x H x D) (without protrusions) Approx. 384.4 x 122.5 x 423.4 mm (15 1/8 x 4 13/16 x 16 21/32 inches)

Mass

Mass Approx. 7.0 kg (15 lb)

Supplied accessories

Remote commander RM-PJ8

Optional Accessories

Replacement lamp LMP-E212
Wireless LAN module IFU-WLM3
יצרן\מותג: Sony
טווח מחירים : 6000-7000 ₪
רזולוציה טבעית: XGA 1024x768
עוצמת הארה : 2500-3000 ANSI, 3000-3500 ANSI
מקרנים ע"פ שימוש\יישום : אינטראקטיבי
משקל : 5.0-7.0 ק"ג
סוגי עדשות: טווח קצר
