Projection System: Epson® 3LCD, 3-chip technology
Projection Method: Front / wall mount
Driving Method: Poly-silicon TFT Active Matrix
Pixel Number: 1,024,000 dots (1280 x 800) x 3
Color Brightness (Color Light Output): 3400 lumens1
White Brightness (White Light Output): 3400 lumens1
Interactive Color Brightness (Color Light Output): 3400 lumens1
Interactive White Brightness (White Light Output): 3400 lumens1
Aspect Ratio: 16:10
Native Resolution: 1280 x 800 (WXGA)
Resize: 640 x 480 (VGA), 800 x 600 (SVGA), 1024 x 768 (XGA), 1152 x 864 (SXGA), 1280 x 960 (SXGA2), 1280 x 1024 (SXGA3), 1366 x 768 (WXGA 60-2), 1440 x 900 (WXGA+), 1400 x 1050 (SXGA+), 1600 x 1200 (UXGA)
Lamp Type: 215 W UHE
Lamp Life:
- ECO mode: Up to 10000 hours2
- Normal mode: Up to 5000 hours2
Throw Ratio Range: 0.48 – 0.65
Size (projected distance):
- 53" – 116" without wall mount
- 68" – 113" with wall mount
Keystone Correction:
Manual:
- Vertical: ±7 degrees
- Horizontal: ±5 degrees
Contrast Ratio: Up to 16,000:1
Color Reproduction: Up to 1.07 million colors
Other
Display Performance:
- NTSC: 480 lines
- PAL: 576 lines
(Depends on observation of the multi-burst pattern)
Input Signal: NTSC / NTSC4.43 / PAL / M-PAL / N-PAL / PAL60 / SECAM

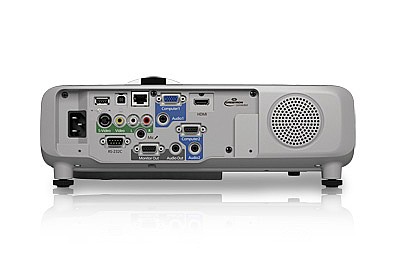

Interfaces:
- Computer / component video: D-sub 15 pin x 2
- S-video: Mini DIN x 1
- Composite video: RCA (Yellow) x 1
- Audio in: RCA x 1 (L and R), Mini stereo x 2
- USB connector: Type B x 1 (USB display, audio and pen control)
- USB connector: Type A x 1 (USB memory/document camera)
- HDMI x 1
- RJ-45 x 1
- Serial: RS-232c x 1
- Monitor out: D-sub 15pin x 1
- Audio out: Mini stereo x 1
- Microphone: Mini stereo x 1
- Wireless LAN USB port: 802.11 b/g/n (optional module sold separately
Speaker: 16 W mono
Operating Temperature: 41° to 95° F (5° to 35° C)
Power Supply Voltage: 100 – 240 V ±10%, 50/60 Hz AC
Power Consumption:
- ECO mode: 254 W
- Normal mode: 344 W
- Communication on: 6.80 W standby
- Communication off: 0.28 W standby
Fan Noise:
- ECO mode: 29 dB
- Normal mode: 37 dB
Security: Kensington® security lock port, padlock and security cable hole, password protect function
Remote Control
Features: Source search, video, LAN, computer, USB, power, aspect, color mode, volume, e-zoom, A/V mute, freeze, menu, page up and down, help, auto, mouse functions, user, esc, Pen mode
Operating Angle:
- Right / Left: ±30 degrees
- Upper / Lower: 10 to 70 degrees
Operating Distance: 19.7 ft. (6 m)
Interactive Specifications
Interactive Technology: infrared, 940 nm
Interactive Area:
- 68" to 113" diagonal (16:10, WXGA) wall mounted
- 53" to 116" without mount
Interactive Modes: Computer interactivity/input: Interactive and Whiteboard modes, Dual user PC-free annotations
Calibration Method: Automatic or Manual
Interactive Connectivity: USB
System Compatibility:
- Connection to the computer: USB
Epson Easy Interactive Driver
- Windows® and Linux: no driver required
- Macintosh®: Mac OS® X 10.5.x, 10.6.x, 10.7.x, 10.8.x (Included in the box. Also available for unlimited download at Epson.com support page)
