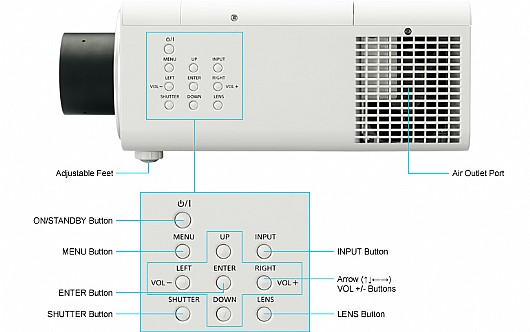

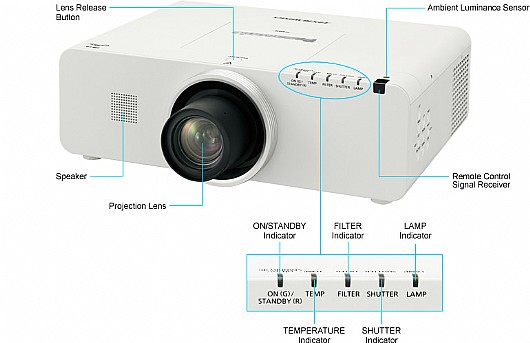

| eneral |
Power supply |
100 – 240 V AC, 50/60 Hz |
| Power consumption |
490 W (0.4 W with STANDBY MODE set to ECO,*1 11 W with STANDBY MODE set to NETWORK.) |
| LCD panel |
Panel size |
20.0 mm (0.80 inches) diagonal (4:3 aspect ratio) |
| Display method |
Transparent LCD panel (x 3, R/G/B) |
| Drive method |
Active matrix |
| Pixels |
786,432 (1,024 x 768) x 3, total of 2,359,296 pixels |
| Lens |
PT-EZ570 / EW630 / EX600 |
Powered zoom (throw ratio 1.7–2.8:1), powered focus F 1.7–2.3, f 26.9–45.4 mm |
| PT-EZ570L / EW630L / EX600L |
Optional powered zoom/focus lenses and fixed-focus lens |
| Lamp |
330 W UHM lamp x 1, lamp replacement cycle: 4,000 hours*2 |
| Screen size (diagonal) |
1.02–10.16 m (40–400 inches)
(4:3 aspect ratio) |
| Color reproducibility |
Full color (16,777,216 colors) |
| Brightness*3 |
6,000 lm (lamp power: Auto/Normal) |
| Center-to-corner uniformity*3 |
90% |
| Contrast*3 |
5,000:1 (full on/off, lamp power: Auto/Normal, iris: On) |
| Resolution |
1,024 x 768 pixels*4 |
| Scanning frequency |
HDMI/DVI-D |
(Horizontal) 26–80 kHz; (Vertical) 23–85 Hz; (Dot clock) 162 MHz or lower |
| RGB (analog) |
(Horizontal) 15–120 kHz;
(Vertical) 48–100 Hz;
(Dot clock) 230 MHz or lower
(Signals exceeding the dot clock rate of 140 MHz are downsampled.) |
| YPBPR (YCBCR) |
fH: 15.75 kHz, fV: 60 Hz [480i (525i)]
fH: 31.50 kHz, fV: 60 Hz [480p (525p)]
fH: 45.00 kHz, fV: 60 Hz [720 (750)/60p]
fH: 33.75 kHz, fV: 60 Hz [1035/60i]
fH: 28.13 kHz, fV: 50 Hz [1080 (1125)/50i]
fH: 28.13 kHz, fV: 50 Hz [1080/25sF]
fH: 27.00 kHz, fV: 48 Hz [1080/24sF]
fH: 33.75 kHz, fV: 60 Hz [1080/30sF]
fH: 56.25 kHz, fV: 50 Hz [1080/50p]
fH: 15.63 kHz, fV: 50 Hz [576i (625i)]
fH: 31.25 kHz, fV: 50 Hz [576p (625p)]
fH: 37.50 kHz, fV: 50 Hz [720 (750)/50p]
fH: 33.75 kHz, fV: 60 Hz [1080 (1125)/60i]
fH: 28.13 kHz, fV: 25 Hz [1080/25p]
fH: 27.00 kHz, fV: 24 Hz [1080/24p]
fH: 33.75 kHz, fV: 30 Hz [1080/30p]
fH: 67.50 kHz, fV: 60 Hz [1080/60p] |
| Video/S-Video |
fH: 15.75 kHz, fV: 60 Hz [NTSC/NTSC4.43/PAL-M/PAL60],
fH: 15.63 kHz, fV: 50 Hz [PAL/PAL-N/SECAM] |
| Optical axis shift*5 |
Vertical |
±50% from center of screen (powered) |
| Horizontal |
±10% from center of screen (powered) |
| Keystone correction range |
Horizontal: ±30°*6, vertical: ±40°*6 |
| Installation |
Ceiling/floor, front/rear |
| Built-in speaker |
3.7 cm round shape x 1, output power 10.0 W (monaural) |

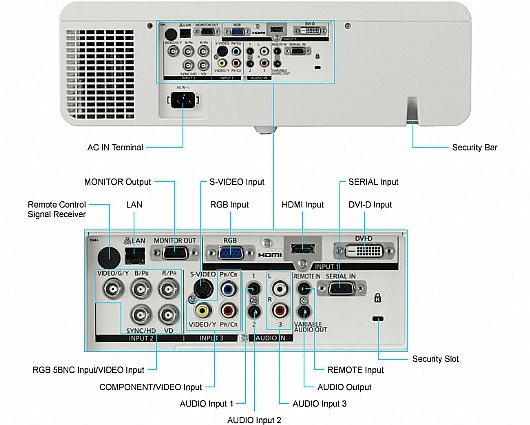

| Terminals |
INPUT 1 - DVI-D IN |
DVI-D 24-pin x 1 (DVI 1.0 compliant, compatible with HDCP, compatible with single link only) |
| INPUT 1 - HDMI IN |
HDMI 19-pin x 1 (Deep Color, compatible with HDCP) |
| INPUT 1 - RGB IN |
D-sub HD 15-pin (female) x 1 (RGB x 1) |
| INPUT 2 - RGB 5BNC IN/ VIDEO IN |
BNC x 5 (RGB/YPBPR/YCBCR x 1), shared with VIDEO IN (BNC x 1) (composite video) |
| INPUT 3 - COMPONENT/ VIDEO IN |
RCA x 3 (YPBPR/YCBCR/composite video x 1) |
| INPUT 3 - S-VIDEO IN |
Mini DIN 4-pin x 1 |
| MONITOR OUT |
D-sub HD 15-pin (female) x 1 (RGB x 1) |
| AUDIO IN 1 |
M3 x 1 (L-R x 1) |
| AUDIO IN 2 |
M3 x 1 (L-R x 1) |
| AUDIO IN 3 |
RCA pin x 2 (L/R x 1) for VIDEO/S-VIDEO input |
| AUDIO OUT |
M3 x 1 (L-R x 1) for output (variable) |
| SERIAL IN |
D-sub 9-pin (female) x 1 for external control (RS-232C compliant) |
| REMOTE IN |
M3 Jack x 1 (for wired remote control) |
| LAN |
RJ-45 x 1 (for network connection, 100BASE-TX/10BASE-T, compliant with PJLink™ (class 1)) |
| Cabinet materials |
Molded plastic (PC + ABS) |
| Dimensions (W x H x D) |
PT-EZ570 / EW630 / EX600 |
489.5 x 164*8 x 434 mm (19.3" x 6.5"*8 x 17.1") (with supplied lens) |
| PT-EZ570L / EW630L / EX600L |
489.5 x 164*8 x 370 mm (19.3" x 6.5"*8 x 14.6") (without lens) |
| Weightl*7 |
PT-EZ570 / EW630 / EX600 |
Approximately 10.3 kg (22.7 lbs) (with supplied lens) |
| PT-EZ570L / EW630L / EX600L |
Approximately 9.6 kg (21.2 lbs) (with supplied lens) |
| Noise level*7 |
37 dB (Lamp power: Normal); 31 dB (Lamp power: Eco1 or Eco2) |
| Operating temperature |
0°C–40°C (32°F–104°F)*9 |
| Operating humidity |
20% - 80% (no condensation) |
| Supplied accessories |
Power cord x 1 ( x 2 for PT-EZ570E/EZ570EL, PT-EW630/EW630EL, PT-EX600E/EX600EL), power cord holder/power cord cover x 1, wireless/wired remote control unit x 1, batteries (AAA/R03/LR03 type x 2), computer cable (1.8 m, for VGA) x 1, Software CD-ROM (Logo Transfer Software, Multi Projector Monitoring & Control Software) x1, |
| NOTE |
* Product numbers vary depending on the market. The general guideline is as follows:
The product numbers in the Americas and Taiwan are PT-EZ570U/PT-EZ570UL, PT-EW630U/PT-EW630UL and PT-EX600U/PT-EX600UL.
The product numbers in Europe, CIS, Asia (except Taiwan), Oceania, Middle East, and Africa are PT-EZ570E/PT-EZ570EL, PT-EW630E/PT-EW630EL and PT-EX600E/PT-EX600EL.
*The PT-EZ570L/EW630L/EX600L delivers the same performance as the PT-EZ570/EW630/EX600, but comes without a lens.
*1 When the STANDBY MODE is set to ECO, network functions such as power on over the LAN will not operate. Also, only certain commands can be received for external control using the serial terminal.
*2 This is the maximum value when the lamp power is set to Eco1 or Eco2 mode where the lamp is turned on for 2 hours and off for 0.25 hours. If the lamp is turned on more times or kept on for a long time, the lamp replacement cycle will shorten. In Normal mode, the lamp replacement cycle is 3,000 hours. The usage environment affects the duration of the lamp
*3 Measurement, measuring conditions, and method of notation all comply with ISO 21118 international standards.
*4 Input signals that exceed the native resolution will be converted to the native resolution.
*5 The axis shift function cannot be used with the ET-ELW21 .
*6 With the supplied lens. Value differs when the correction for both directions is operated.
*7 Average value. May differ depending on models.
*8 With legs at shortest position.
*9 The operating temperature range is 0 °C to 30 °C (32 °F to 86 °F) when the fan control is set to ON 1 for altitudes from 1,000 m to 2,000 m (3,281 ft to 6,562 ft) above sea level, 0 °C to 30 °C (32 °F to 86 °F) when the fan control is set to ON 2 for altitudes from 2,000 m to 2,700 m (6,562 ft to 8,858 ft) above sea level. |
