Display Technology Single 0.65” WXGA DC3 DMD DLP® Technology by Texas Instruments™
Native Resolution WXGA 1280 x 800
Brightness 3600 lumens
Contrast Ratio 20,000:1 (full on/full of)
Lamp Life2 Eco+/Dynamic/Eco/Bright 7000/6500/6000/4000 (hrs)
Throw Ratio 3 0.52 (distance/width)

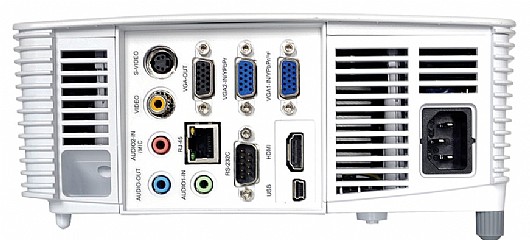

I/O Connectors HDMI, two VGA-in, VGA-out, S-video, composite video, audio-in/mic, audio-in, audio-out, RS-232C, RJ45 and USB mini-B
Speaker (Watts) 10-Watt speaker
Audio 10-Watt speaker
Keystone Correction ± 40° Vertical
Weight 6.1 lbs (2.77 kg)
Dimensions (W x H x D) 12.4" x 4.0" x 8.8" (314 x 101 x 224 mm)
Aspect Ratio 16:10 Native, 16:9 and 4:3 Compatible
Offset 112%
Projection Distance 1.6' - 11.1' (0.5-3.4 m)
Projection Lens F=2.8, f=7.419 mm, manual focus
Uniformity >80%
Maximum Resolution WUXGA (1920 x 1200)
Computer Compatibility WUXGA, HD, UXGA, SXGA+, WXGA+, WXGA, SXGA, XGA, SVGA, VGA
Video Compatibility NTSC, PAL, SECAM, SDTV (480i), EDTV (480p), HDTV (720p, 1080i/p)
3D Compatibility Supports all HDMI 1.4a mandatory 3D formats (Frame pack, side-by-side, top-bottom) and up converts frame rate from 60Hz to 120Hz or 24Hz to 144Hz (i.e 60 or 72 frames per eye). 3D glasses are needed and are sold separately. Refer to user manual for details.
Horizontal Scan Rate 15.375 - 91.1KHz
Vertical Scan Rate 24 - 85Hz, 120Hz
Displayable Colors 1.07 Billion
Noise Level (Eco mode) 29dB
Power Supply AC input 100-240V, 50-60Hz, auto-switching
Power Consumption Max 280W (Normal), Min 194W (Eco+), <0.5W (standby-ECO)
Lamp Type 210W
Operating Conditions 41-104°F (5-40°C), 85% max humidity
Security Kensington® lock port, security bar & keypad lock
On Screen Display Complete on-screen menu, adjustments in 27 languages
Remote Control IR remote mouse control with laser
Standard Accessories AC power cord, remote control, batteries for remote, lens cap, multilingual CD-ROM user's manual, quick start card and warranty card
Optional Accessories Universal ceiling mounts, wall mount, wireless HDMI system, Cat6 HDBaseT, Optoma screen, VGA dongle, DLP® Link™ 3D glasses and carrying case
Optional Wireless Yes
RoHS Compliant
Projection method Front, rear, ceiling mount, table top
