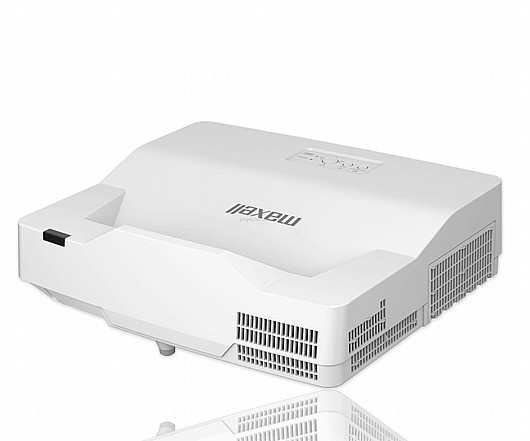

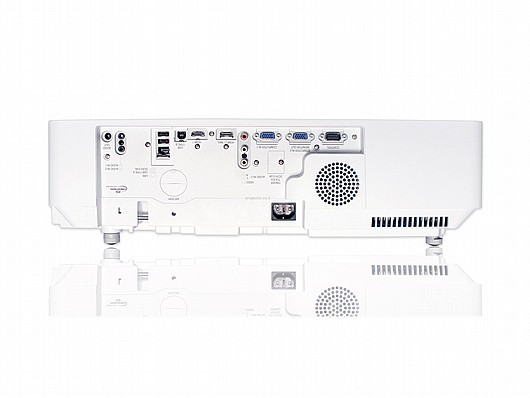

מקרן לייזר אינטראקטיבי Maxell MP-TW4011 LCD Laser Interactive 4200L WXGA 1280x800

Projection Technology 3LCD, 3 chip technology

Resolution WXGA 1280 x 800

Brightness 4,200 ANSI lumens

Colors 16.7 million colors

Aspect Ratio Native 16:10, 4:3, 16:9, 14:9 and zoom compatible

Contrast Ratio 500,000 : 1 (Dynamic Black on)

Throw Ratio (distance : width) 0.3 : 1 (From center of mirror to screen)

Focus Distance 16" – 35" (From center of mirror to screen)

Display Size 60" – 130" or 60" – 110" using interactive feature

Lens f = 4.21 mm, digital zoom x 1.35, powered focus

Expected Light Source Life* Approx. 20,000 hours (Normal and Whisper mode), 30,000 hours (Long life 1 mode), 50,000 hours (Long life 2 mode)

Expected Filter Life** Approx. 20,000 hours

Speaker Output 16W

Keystone H and V: +/- 5°

Computer VGA, SVGA, XGA, WXGA, SXGA/WXGA+/WSXGA+/UXGA/ WUXGA, Mac 16"

H-Sync 15 kHz – 106 kHz

V-Sync 50 Hz – 120 Hz

Composite Video NTSC, NTSC4.43, PAL, PAL-M, -N, SECAM

Component Video 480i, 480p, 576i, 576p, 720p, 1080i, 1080p

HDMI 480i, 480p, 576i, 576p, 720p, 1080i, 1080p Computer signal TMDS clock 25 MHz – 162 MHz

MHL 480i, 480p, 576i, 576p, 720p, 1080i, 1080p Computer signal TMDS clock 25 MHz – 75 MHz

Digital Input HDMI x 1, HDMI/MHL x 1 (HDCP compliant)

Computer Input 1 15-pin mini D-sub x 1

Computer Input 2 15-pin mini D-sub x 1

Computer Monitor Output 15-pin mini D-sub x 1 (shared with computer in 2)

Composite Video Input RCA jack x 1

Component Video Input 15-pin mini D-sub x 2 (shared with analog computer in 1/2)

Audio Input 3.5mm stereo mini jack x 1, RCA jack (L/R) x 1

Audio Output 3.5 mm stereo mini jack x 1

Network (LAN) Wired RJ-45 port (10 base-T / 100 base-TX)

Network (LAN) Wireless USB-A, IEEE802.11 a/b/g/n/ac – optional wireless adapter required

USB Type A x 2 (PC-less presentation, wireless adapter) Type B x 1 (USB display or mouse control)

Control Terminals 9-pin D-sub x 1 (RS-232 control)

Power Supply AC100-120V / AC220-240V, 50/60Hz

Power Consumption 350W/340W

Operating Temperature 32° – 104° (0°C – 40°C) under 5,250 ft. 32° – 95° (0°C – 35°C) 5,250 ft. – 10,000 ft.

Dimensions (W x D x H) 19.9" x 16.7" x 5.5"

Weight Approximately 17.4 lbs.

Approvals UL 60950-1 / cUL, FCC Part 15 subpart B class B
