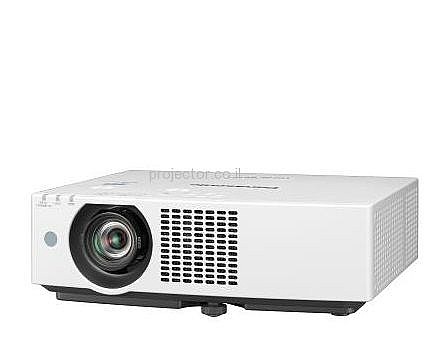

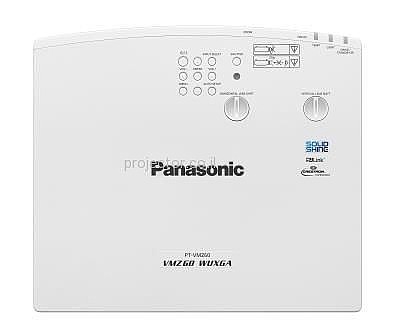

PT-VMZ60
Projector type LCD Projectors
LCD panel
Panel size 16.3 mm (0.64 in) diagonal (16:10 aspect ratio)
Display method Transparent LCD panel (x 3, R/G/B)
Drive method Active matrix method
Pixels 2,304,000 (1920 x 1200) x 3, total of 6,912,000 pixels
Light source Laser diodes
Light output*1 6,000 lm
Time until light output declines to 50 %*2 20,000 hours (NORMAL)
Resolution 1920 x 1200 pixels
Contrast*1 3,000,000:1 (all white/all black)
(PICTURE MODE: DYNAMIC, DYNAMIC CONTRAST: [1])
Screen size (diagonal) 0.76–7.62 m (30–300 in), 16:10 aspect ratio
Center-to-corner uniformity*1 85 %
Lens 1.6 x Manual zoom (Throw ratio: 1.09–1.77:1)
Manual focus lens, F = 1.60–2.12, f = 15.30–24.64 mm
Lens shift
Vertical (from center of screen) +44 %, 0 % (Manual)
Horizontal (from center of screen) +20 %, -20 % (Manual)
Keystone correction range Vertical: ±25 °, Horizontal: ±35 °
Installation Horizontal/vertical, free 360-degree installation
Terminals
HDMI 1/2 IN HDMI 19-pin x 2 (Compatible with HDCP, Deep Color, 4K/30p signal input), Audio Signal: Linear PCM (Sampling frequency: 48 kHz/44.1 kHz/32 kHz)
COMPUTER 1 IN D-sub 15-pin (female) x 1 (RGB/YPBPR/YCBCR)
COMPUTER 2 IN/OUT D-sub 15-pin (female) x 1 (RGB/YPBPR/YCBCR) (Input/output switching)
VIDEO IN Pin jack x 1
AUDIO 1/2 IN M3 stereo mini-jack x 2
AUDIO 3 IN Pin jack (L/R) x 1
VARIABLE AUDIO OUT M3 stereo mini-jack x 1
SERIAL IN D-sub 9-pin (female) x 1 for computer control (RS-232C compliant)
LAN RJ-45 x 1 for network control, 10Base-T, 100Base-TX, compatible with PJLink™ (Class 2)
DIGITAL LINK/LAN RJ-45 x 1 for network and DIGITAL LINK connection, HDBase-T™ compliant, 100Base-TX, compatible with PJLink™ (Class 2), HDCP, Deep Color, 4K/30p signal input
USB (VIEWER/WIRELESS/DC OUT) USB connector (Type A) x 1 for Memory Viewer function, optional Wireless Module AJ-WM50, power supply (DC 5 V, maximum 2 A*3)
Power supply AC 100 V–240 V, 50/60 Hz
Power consumption TBD
Built-in speaker 10 W monaural
Cabinet materials Molded plastic
Filter*4 Included [Filter cleaning cycle: 20,000 hours (under dust conditions of 0.08 mg/m3), 10,000 hours (under dust conditions of 0.15 mg/m3)]
Operation noise*1 TBD
Dimensions (W x H x D) 399 mm x 115 mm x 348 mm (15 23/32˝ x 4 17/32˝ x 13 11/16˝ ) (Not including protruding parts)
399 mm x 133 mm x 348 mm (15 23/32˝ x 5 1/4˝ x 13 11/16˝ ) (With feet at shortest position)
Weight*5 Approx. 7.2 kg (15.87 lbs)
Operating environment Operating temperature: 0–45 °C (32–113 °F)*6
Operating humidity: 20–80 % (No condensation)
Applicable software Multi Monitoring & Control Software, Logo Transfer Software, Presenter Light Software for Windows®, Wireless Projector App for iOS/Android™
