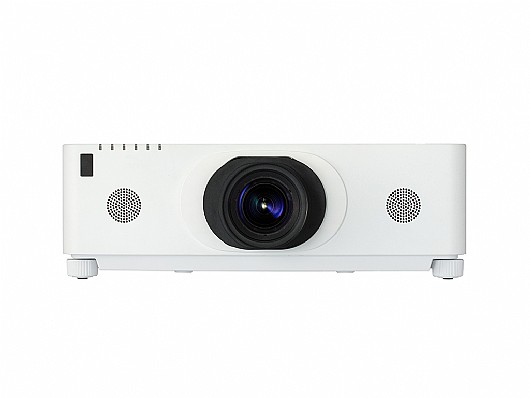

מקרן ללא עדשה HITACHI CP-WU8600-BODY WUXGA 6000 Lumens

Display System 3LCD
Display device size of effective
display area

0.76"LCD X 3
number of pixels 2,304,000 (H1,920 x V1,200)
Standard Lens Optional
Zoom Motorized (except fot the fixed short throw lens FL-701)
Focus Motorized
Lens Shift Motorized (V,H) (except for the fixed short throw lens FL-701)
Light source 370W
Screen size 30-600 inch
Light output (Brightness) 6,000lm
Contrast ratio 10,000 : 1 (Presentation mode)
Speakers 8W x 2 (mono)
Power requirements V AC100-120V / AC220-240V (50/60Hz)
Max. Power Consumption AC100-120V:510W, AC200-240V:500W
Standby mode power consumption less than 0.35W
Operating temperature ℃/°F
0-45 ℃(32-104°F) at altitude of 0 - 3,048m
(The brightness of lamp is reduced automatically)
Operating Humidity (RH) 10 - 90%RH (non-condensing)
Terminals Computer In 1 Mini D-sub 15-pin connector x 1
Monitor Out Mini D-sub 15-pin connector x 1
Video RCA connector x 1
HDMI IN HDMI connector x 2
HDBaseT RJ-45 connector x 1
Display Port Display Port x 1
Audio IN 3.5mm stereo mini connector x 1/ 2 RCA connector L/R x 1
Audio OUT 3.5mm stereo mini connector x 1
Control (RS-232C) D-sub 9-pin connector x 1
LAN RJ-45 connector x 1
USB-A USB Type A x 1 (Used for wireless network)
Remote control IN 3.5mm stereo mini connector x 1
Remote control OUT 3.5mm stereo mini connector x 1
Standard outside Dimensions W mm (inch) 498 (19.6") (Excluding protrusions)
H mm (inch) 167 (6.6") (Excluding protrusions)
D mm (inch) 437 (17.2") (Excluding protrusions)
Weight kg (lbs) Approx. 11.1 (24.5lbs)
Accessories Remote control with batteries, Power cord, Computer cable, Adapter cover, Terminal cover, Application CD, User manual
