Display Technology Single 0.55” XGA DLP® Technology by Texas Instruments
Native Resolution XGA 1024 x 768
Brightness 4500 ANSI Lumens
Contrast Ratio 15,000:1
Lamp Life2 Eco/Bright 4000/2500 (hrs)
Throw Ratio 3 1.39 - 2.26:1, Offset: 115%
Zoom Type 1.6x Manual

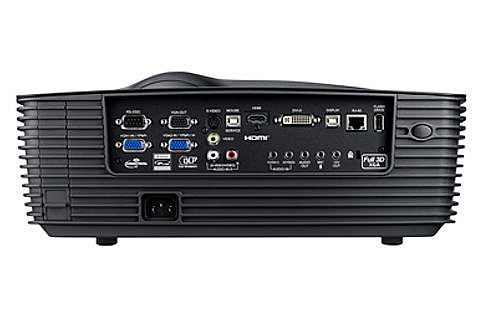

I/O Connectors HDMI, DVI-D, 2x VGA (RGB/YPbPr), S-Video, Composite, 3 x Audio In (RCA/3.5mm), Mic 3.5mm, Audio Out 3.5mm, VGA Out, RJ45, RS232, 2x USB-B (Remote Mouse/Display), 2x USB-A (Reader / WiFi), +12v Trigger
Speaker (Watts) 30
Audio 30W (2x15W stereo)
Keystone Correction ± 40° Vertical
Weight 9.9 lbs (4.5 kg)
Dimensions (W x H x D) 15.2" x 6" x 11" (386 x 152 x 279 mm)
Aspect Ratio 4:3 Native, 16:9/16:10 Compatible
Offset 115%
Projection Screen Size 0.76 – 7.62m (30” - 300”) Diagonal 4:3
Projection Distance 1.2 - 10m
Projection Lens F/2.42~2.98; f=20.77~31.13mm, 1.6x Manual Zoom
Uniformity 85%
Maximum Resolution VGA: UXGA (1600 x 1200) HDMI: HD (1920 x 1080)
Computer Compatibility UXGA, SXGA+, HD, WXGA, XGA, SVGA
Video Compatibility PAL SECAM 576i/p, NTSC 480i/p, HD 720p/1080i/1080p
3D Compatibility Mandatory HDMI 1.4 3D formats, 120Hz frame
sequential (up to 720p)
3D Viewing Requires Optoma DLP® Link™ active shutter glasses
– sold separately
Horizontal Scan Rate 15 - 91kHz
Vertical Scan Rate 25 - 120Hz
Displayable Colors 1.07 Billion
Noise Level (Eco mode) 27dB
Power Supply 100-240V, 50-60Hz
Power Consumption 345W Bright mode, 279W Eco+ mode, <0.5W Standby mode
Lamp Type 310W
Security Kensington Lock, Password Protection
On Screen Display 19 Languages: English, German, French, Italian, Spanish, Portuguese, Polish, Dutch, Russian, Finnish, Swedish,Greek, Norwegian/Danish, Hungarian, Czech, Arabic, Turkish, Farsi, Romanian
Remote Control Full function remote with laser pointer, mouse control and direct source selecting
Standard Accessories AC Power Cord, VGA Cable, Infra Red Remote Control with Batteries, Quick Start Card, Warranty Card
Optional Accessories Ceiling Mount Kit
Optional Wireless Yes
360’ Operation Not supported
Portrait Mode Not supported
RoHS Compliant
Photo Jpeg
Projection method Front, rear, ceiling mount, table top
Features V.Lens Shift, PC-Free / LAN presentation, Crestron RoomView®, PJ-Link
Warranty 3-Year Optoma Express Service, 1-Year on Lamp
