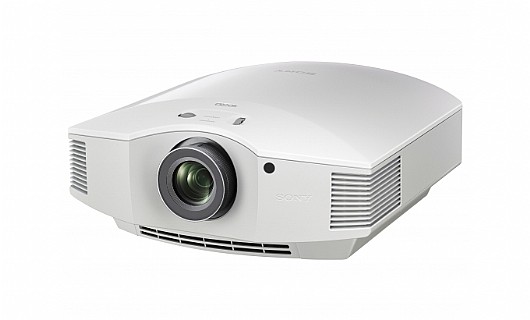

Display System SXRD panel, projection system
Display device
Size of effective display area 0.61” x 3
Number of pixels 6,220,800 (1920 x 1080 x 3) pixels
Projection lens
Focus Manual
Zoom Manual (Approx. x1.6)
Lens shift Manual, Vertical: +/- 71%, Horizontal: +/- 25%
Light source
Light source High-pressure mercury lamp, 215 W type
Recommended lamp replacement time *1
Recommended lamp replacement time 6000 H (Lamp mode: Low)
Filter replacement cycle (Max.)
Filter replacement cycle (Max.) Same time as the lamp replacement is recommended
Screen size
Screen size 40” to 300” (1,016 mm to 7,624 mm)
Light output
Light output 1800 lm (Lamp mode: High) *2
Colour light output
Colour light output 1800 lm (Lamp mode: High) *2
Contrast ratio
Contrast ratio 120,000:1 (Dynamic Contrast)
Displayable scanning frequency
Horizontal 19 kHz to 72 kHz
Vertical 48 Hz to 92 Hz
Display resolution
Computer signal input Maximum display resolution: 1920 x 1080 dots (HDMI Input only)
Video signal input 480/60p, 576/50p, 720/60p, 720/50p, 1080/60i, 1080/50i
The following items are available for HDMI input only.
1080/60p, 1080/50p, 1080/24p
OSD language
OSD languages 17-languages (English, Dutch, French, Italian, German, Spanish, Portuguese, Russian, Swedish, Norwegian, Japanese, Simplified Chinese, Traditional Chinese, Korean, Thai, Arabic, Polish)

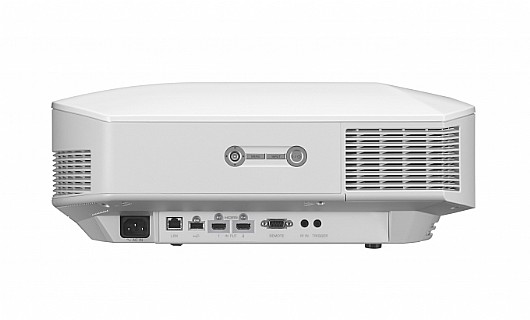

INPUT OUTPUT (Computer / Video / Control)
HDMI1 / HDMI2 Digital (RGB/Y Pb/Cb Pr/Cr)
Trigger Minijack, DC 12 V Max. 100 mA
Remote RS-232C, D-sub 9-pin (female)
LAN RJ45, 10Base-T/100BASE-TX
IR IN Mini Jack
Acoustic noise
Acoustic noise 22 dB
Operating temperature / Operating humidity
Operating temperature / Operating humidity 5°C to 35°C (41°F to 95°F) / 35% to 85% (no condensation)
Storage temperature / Storage humidity
Storage temperature / Storage humidity -20°C to +60°C (-4°F to +140°F) / 10% to 90% (no condensation)
Power requirements
Power requirements AC 100 V to 240 V, 3.1 A to 1.3 A,50/60 Hz
Power consumption
AC 100 V to 120 V Max 310 W
AC 220 V to 240 V Max 310 W
Power consumption (Standby Mode)
AC 100 V to 120 V 0.4 W (when “Standby mode” is set to “Low”)
AC 220 V to 240 V 0.4 W (when “Standby mode” is set to “Low”)
Power consumption (Networked Standby Mode)
AC 100 V to 120 V 1.0 W (LAN) (when "Standby Mode" is set to "Standard")
AC 220 V to 240 V 1.0 W (LAN) (when "Standby Mode" is set to "Standard")
Standby Mode / Networked Standby Mode Activated
Standby Mode / Networked Standby Mode Activated After about 10 Minutes
Dimensions (W x H x D) (without protrusions)
Dimensions (W x H x D) (without protrusions) 407.4 x 179.2 x 463.9 mm
16 1/8 x 7 1/8 x 18 3/8 inches
Mass
Mass Approx. 9 kg / 20 lb
Supplied accessories
Supplied accessories RM-PJ28 Remote Commander (1)
Size AA (R6) Manganese Batteries (2)
AC Power Cord (1), Lens Cap (1)
Operating Instructions (CD-ROM) (1)
Quick Reference Manual (1)
Replacement lamp
Replacement lamp LMP-H210
