Display Technology Single 0.65” 1080p DLP® Technology by Texas Instruments
Native Resolution 1080p 1920 x 1080
Brightness 5000 ANSI Lumens
Contrast Ratio 15,000:1
Lamp Life2 Eco+/Dynamic/Eco/Bright 5000/4500/4000/3000 (hrs)
Throw Ratio 3 1.41 - 2.24:1, Offset: 99%~116%
Zoom Type 1.6x Manual
Lens Shift +17% Vertical

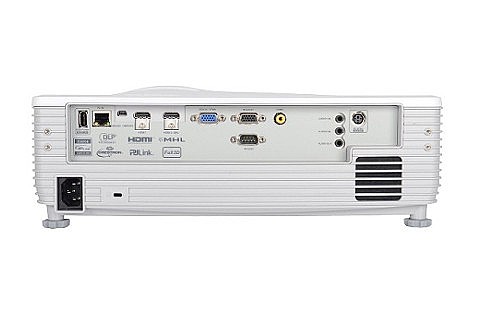

I/O Connectors 3xHDMI (1.4a 3D support) + MHL, VGA (YPbPr/RGB), Composite, 2 x Audio In 3.5mm, VGA out, Audio Out 3.5mm, RS232, RJ45, USB-A Power (1.5A), 3D-Sync, USB mouse/service
Speaker (Watts) 32
Keystone Correction ± 30° Vertical
Weight 10.1 lbs (4.6 kg)
Dimensions (W x H x D) 14.5" x 12" x 5.2" with feet
Aspect Ratio 16:9 Native, 16:10/4:3 Compatible
Offset 99%~116%
Projection Screen Size 26.2”~301.1” Diagonal 16:9
Projection Distance 51.18"–370"
Projection Lens F/2.5~3.26; f=20.91~32.63mm, 1.6x Manual Zoom
Uniformity 85%
Maximum Resolution Full HD 1920 x 1080
Computer Compatibility UXGA, SXGA+, HD, WXGA, XGA, SVGA
Video Compatibility PAL SECAM 576i/p, NTSC 480i/p, HD 720p/1080i/1080p
3D Support Full 3D - The 3D features of Optoma projectors can only be used with compatible 3D content. Typical applications include use with 3D educational or 3D design and modelling systems. 3D TV broadcast systems, Blu-ray 3D™ and 3D games from the Sony® PS3 or Microsoft® Xbox 360 are now supported as part of the HDMI v1.4a specification.
3D Compatibility Side-by-Side:1080i50 / 60, 720p50 / 60
Frame-pack: 1080p24, 720p50 / 60
Over-Under: 1080p24, 720p50 / 60
Horizontal Scan Rate 15.375~91.146 KHz
Vertical Scan Rate 24 ~ 85Hz (120Hz for 3D)
Displayable Colors 1.07 Billion
Noise Level (Eco mode) 30dB
Power Supply 100-240V, 50-60Hz
Power Consumption 365W Bright mode / 287W Eco+ mode (<0.5W Standby)
Lamp Type 310W
Security Kensington Lock, Password Protection
Standard Accessories AC power cord, remote control, 2x AA batteries, quick start card, CD user manual
Optional Accessories Wireless 3D system, Wireless 3D glasses, DLP® Link™ 3D glasses, wireless, ceiling mount
Optional Wireless Yes
RoHS Compliant
