Display Technology Single 0.67" WUXGA chip, DLP® Technology by Texas Instruments™
Native Resolution WUXGA 1920 x 1200
Brightness 6000 Lumens
Contrast Ratio 10,000:1 (full on/full off)
Lamp Life2 Eco/Bright 5000/3000 (hrs)
Throw Ratio 3 1.26:1~2.16:1
Zoom Type 1.8x Manual
Lens Shift Vertical: +20%; Horizontal: ±10%(constraints apply see user manual for details)

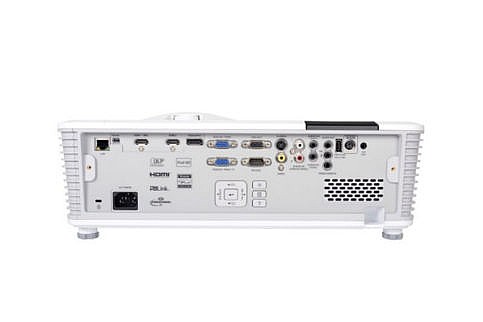

I/O Connectors 1x Display port, 2x HDMI 1.4a + MHL, 2x VGA-In, 1x VGA out, Composite Video, S-Video, 3x Audio-In (stereo, 3.5mm and RCA), 1x Audio-Out (3.5mm jack), 1x Mic in (3.5mm jack), 12v trigger, USB type-A 5V, 3D Sync vesa port, RS- 232C, mini-USB (service/control), RJ45, AC power (3 pin)
Speaker (Watts) Two 10-Watt (stereo)
Audio 24– 85 Hz (120 Hz for 3D feature projector)
Keystone Correction ± 30° Vertical ± 30° Horizontal
Weight 13 lbs (5.9 kg)
Dimensions (W x H x D) 16.7" x 6.3" x 13.5" (424 x 160 x 344 mm)
Aspect Ratio 16:10 (Native), 4:3, Auto
Offset 100% (±5% Variance)
Projection Screen Size 27.9"~301.8" (0.71~7.66 m) diagonal 16:9
Projection Distance 4.26'–25.59' (1.3–7.8 m)
Projection Lens F=17.63~31.36 mm; manual focus
Uniformity 80%
Maximum Resolution WUXGA (1920 x 1200)
Computer Compatibility UXGA, SXGA, XGA, SVGA, VGA, WXGA, HD, Mac
Video Compatibility PAL (B, D, G, H, I, M, N, 4.43MHz), NTSC (M, J, 3.58MHz, 4.443MHz), SECAM (B, D, G, K, K1, L, 4.25,MHz, 4.4MHz, 480i/p, 576i/p, 720p(50/60Hz), 1080i(50/60Hz) 1080p(24/50/60Hz)
3D Support Full 3D - The 3D features of Optoma projectors can only be used with compatible 3D content. Typical applications include use with 3D educational or 3D design and modelling systems. 3D TV broadcast systems, (SKY in the UK), Blu-ray 3D™ and 3D games from the Sony® PS3 or Microsoft® Xbox 360 are now supported as part of the HDMI v1.4a specification.
3D Compatibility Side-by-Side:1080i(50/60Hz)
Frame-pack: 1080p(24Hz), 720p(50/60Hz)
Over-Under: 1080p(24Hz), 1080i(50/60Hz), 720p(50/60Hz)
3D glasses are needed and are sold separately.
Refer to user manual for details.
Horizontal Scan Rate 15.375~91.146 KHz
Vertical Scan Rate 24– 85 Hz (120 Hz for 3D feature projector)
Displayable Colors 1.07 Billion
Noise Level (Eco mode) 28 dB
Power Supply AC input 100–240V @ 50–60 Hz, auto-switching
Power Consumption 445W (Bright), 335W Max (ECO), <0.5W (Standby)
Lamp Type 365W
Operating Conditions 41–113°F (5~45°C), 85% max humidity
Security Kensington® lock port, security bar, password protection
Remote Control IR and wired control
Standard Accessories WU515 projector, AC power cord, VGA cable, remote control, batteries, multilingual CDROM user’s manual, basic user manual, and warranty card
Optional Accessories Universal ceiling mount, Optoma screen, DLP® Link™ 3D glasses, wireless HDMI system
Optional Wireless Yes
360’ Operation Not supported
Portrait Mode Not supported
Color Wheel 6 Segment; RYGCWB
RoHS Compliant
Projection method Front, rear, ceiling mount, table top
Features V/H Lens Shift, PC-Free / LAN presentation, Crestron RoomView®, PJ-Link
