Display System SXRD projection system
Display device
Size of effective display area 0.74" x 3 SXRD
Number of pixels 26,542,080 (4096 x 2160 x 3) pixels
Projection lens
Focus Powered
Zoom - Powered/Manual Powered
Zoom - Ratio Approx. x 2.06
Lens shift - Powered/Manual Powered
Lens shift - Range Vertical + 85% - 80%
Lens shift - Range Horizontal +/- 31%
Light source
Type Ultra high pressure mercury lamp
Wattage 230 W type
Screen size
Screen size 60" to 300" (1.52 m to 7.62 m) (measured diagonally)
Light output
Lamp mode: High 1700 lm
Color light output
Lamp mode: High 1700 lm
Contrast ratio*1
Contrast ratio 200,000 (Dynamic Contrast)
Displayable scanning frequency
Horizontal 19 kHz to 72 kHz
Vertical 48 Hz to 92 Hz
Display resolution
Computer signal input Maximum display resolution: 1920 x 1080 dots (HDMI Input only)
Video signal input 80/60p, 576/50p, 720/60p, 720/50p, 1080/60i, 1080/50i, 1080/60p, 1080/50p, 1080/24p, 3840 x 2160/24p, 3840 x 2160/25p, 3840 x 2160/30p, 3840 x 2160/50p*1, 3840 x 2160/60p*1, 4096 x 2160/24p, 4096 x 2160/25p, 4096 x 2160/30p, 4096 x 2160/50p*1, 4096 x 2160/60p*1
OSD language
OSD language 15-languages (English, Dutch, French, Italian, German, Spanish, Portuguese, Russian, Swedish, Norwegian, Japanese, Simplified Chinese, Traditional Chinese, Korean, Thai)

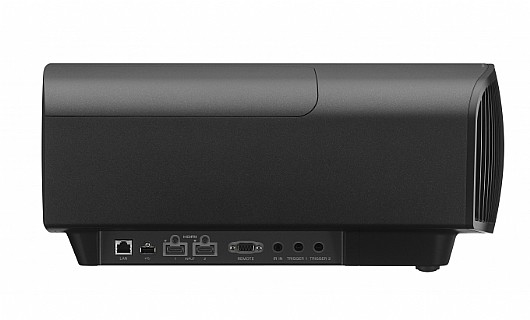

INPUT OUTPUT (Computer/Video/Control)
HDMI 1 / HDMI 2 HDMI (x2)
REMOTE RS-232C connector: D-sub 9-pin (female)
LAN RJ-45, 10Base-T/100BASE-TX
IR IN Mini Jack
TRIGGER1 / TRIGGER2 Mini Jack (x2)
Acoustic noise
Lamp mode: Low 26 dB
Operating temperature / Operating humidity
Operating temperature / Operating humidity 5°C to 35°C (41°F to 95°F) / 35% to 85% (no condensation)
Storage temperature / Storage humidity
Storage temperature / Storage humidity -20°C to +60°C (-4°F to +140°F) / 10% to 90% (no condensation)
Power requirements
Power requirements AC 100 V to 240 V, 4.0 A to 1.7A, 50 Hz / 60Hz
Power consumption
AC 100 V to 120 V 375 W
AC 220 V to 240 V 375 W
Power Consumption (Standby Mode)
AC 100 V to 120 V 0.3 W (when “Remote Start” is set to “Off”）
AC 220 V to 240 V 0.3 W (when “Remote Start” is set to “Off”）
Power Consumption (Networked Standby Mode)
AC 100 V to 120 V 1.0 W (LAN) (when "Remote Start" is set to "Off")
AC 220 V to 240 V 1.0 W (LAN) (when "Remote Start" is set to "Off")
Standby Mode / Networked Standby Mode Activated
Standby Mode / Networked Standby Mode Activated After about 10 Minutes
Dimensions (W x H x D)
Dimensions (W x H x D) (without protrusions) 495.6 x 195.3 x 463.6 mm (19 1/2 x 7 11/16 x 18 1/4 inches)
Mass
Mass 14 kg (31 lb)
Supplied accessories
Remote commander RM-PJ24
Optional Accessories
Replacement lamp LMP-H260
Wireless HD Unit IFU-WH1
IR 3D Glasses TDG-BT500A
