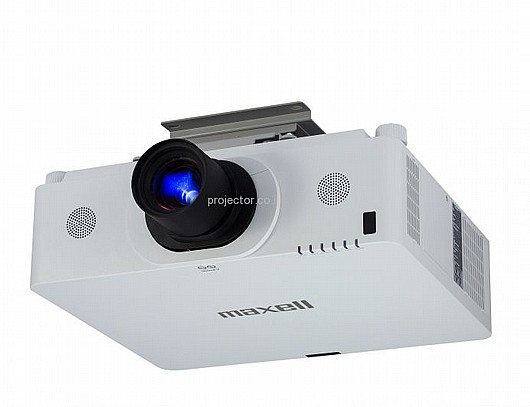

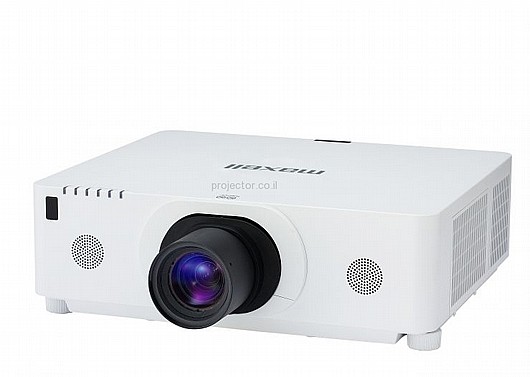

מקרן Maxell MC-WU8601 6000L WUXGA1920x1200

Optical

Display System 3LCD 19mm (0.75")

Light Source lamp

Resolution WUXGA (1920 x 1200)

Light Output (Brightness) ANSI Lumens 6000 (Normal), 4800 (Eco)

Contrast Ratio 10,000:1

Lamp Life (Hours) 3000 (Normal), 4000 (Eco)

Lens Interchangeable, not included

Lens Zoom Powered Zoom x 1.7 (standard lens ML-713M)

Lens Shift Motorized, Vertical 0 – +55%; Horizontal +/-10% (Standard Lens ML-713M)

Lens Focus Powered Focus

Throw Distance 1.1 – 22.1m (Wide), 1.9 – 37.6m (Tele) (ML-713M)

Distance to Width Ratio/ Throw Ratio (:1) 1.7 – 3.0 (ML-713M)

Diagonal Display Size 30 – 600" (FL-710M 100" – 350")

Features

Speakers 8W Stereo

Digital Keystone Correction Horizontal ± 30°, Vertical ± 30° (ML-713M)

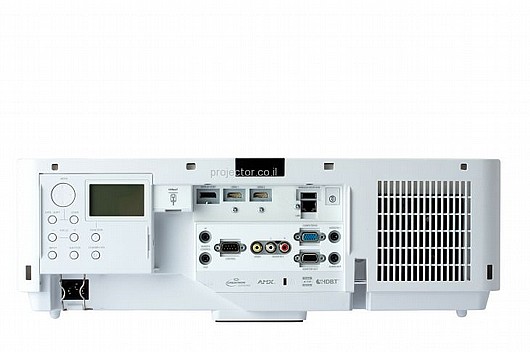

Connections

Digital Input HDMI x 2, HDBaseT x1, DisplayPort x1

Analogue Input 15 pin Mini D-Sub x1, RCA Jack x1

Video Output 15 pin Mini D-Sub x1

Audio Input 3.5mm Stereo Mini Jack x2, RCA Jack (L/R) x1

Audio Output RCA Jack (L/R) x1

RS-232C Control 1x 9-pin D-Sub

Wireless LAN USB-WL-11N wireless adapter (optional)

Wired LAN RJ45 connector x1

USB Type A USB Type A x1 (wireless adapter)

USB Type B No

Power

Power Supply AC 100V – 120V / AC 220V – 240V (50/60Hz)

Operating Power Consumption 500W

Standby Power Consumption Less than 0.35W

Physical

Weight 11.1kg

Dimensions (W x H x D) (Without feet) 498 x 156 x 426mm

Noise 35dB (Normal), 30dB (Eco)

Filter Life (Hours) 20,000

Compatibility

Computer IBM Compatible VGA, SVGA, XGA, WXGA, WXGA+, SXGA, SXGA+, WSXGA+, UXGA, HD, WUXGA, MAC16"

Video 525i (480i), 525p (480p), 625i (576i), 625p (576p), 1125i (1080i@50/60), 750p (720p@50/60), 1125p (1080p@50/60)

Accessories

Supplied Accessories Power Cable (1.8m) x1, Computer Cable (2m) x1, IR Remote Control Unit x1, AA Batteries x2, Application CD (for network, etc.) x1, CD User Manual x1, Concise User Manual x1, Security Label x1, Lens Hole Cover x1, Adapter Cover x1, Terminal Cover x1, HDMI Cable Holder x2, Cable Tie x2

Optional Accessories USB wireless adapter USB-WL-11N, Wireless pen tablet TB-1, Optional Lenses: Ultra-short-throw FL-710M, Short-throw USL-701M, Short-throw FL-701M, Short-throw SL-712M, Standard-throw ML-713M, Long-throw LL-704M, Ultra-long-throw UL-705M

Remote Control HL02805

Replacement Lamp / Filter DT01871M / UX40821
