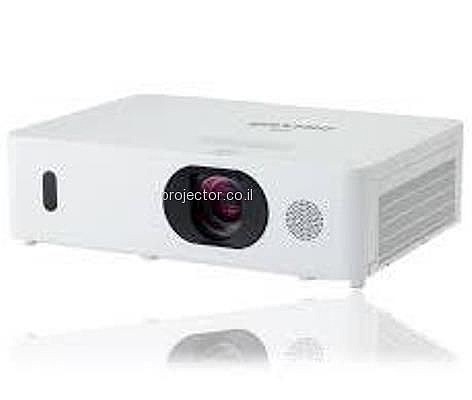

מקרן Maxell MU-WU5501 5200L WUXGA 1920x1200

Projection Technology 3LCD, 3 chip technology

Resolution WUXGA 1920 x 1200

White Light Output 5,200 ANSI lumens

Color Light Output 5,200 ANSI lumens

Colors 16.7 million colors

Aspect Ratio Native 16:10 / 4:3, 14:9 and 16:9 compatible

Contrast Ratio 10,000 : 1 (using active IRIS)

Throw Ratio (distance : width) 1.4 – 2.3 : 1

Focus Distance 33" – 597"

Display Size 30" – 300"

Lens f = 19.8 – 33.9, x 1.7 manual zoom, focus & lens shift

Lamp Wattage 300W

Expected Lamp Life* Approximately 4,000 hours (standard mode) 6,000 hours (Eco mode)

Expected Filter Life** Approximately 10,000 hours

Speaker Output 16W

Keystone H and V: +/- 30°

Computer VGA, SVGA, XGA, WXGA, WXGA+/SXGA/SXGA+/WSXGA+/ UXGA/WUXGA, MAC 16"

H-Sync 15 kHz – 106 kHz

V-Sync 50 Hz – 120 Hz

Composite Video NTSC, NTSC4.43, PAL, PAL-M, -N, SECAM

Component Video 480i, 480p, 576i, 720p, 1080i, 1080p

HDMI 480i, 480p, 576i, 720p, 1080i, 1080p, Computer signal TMDS clock 27 MHz – 150 MHz

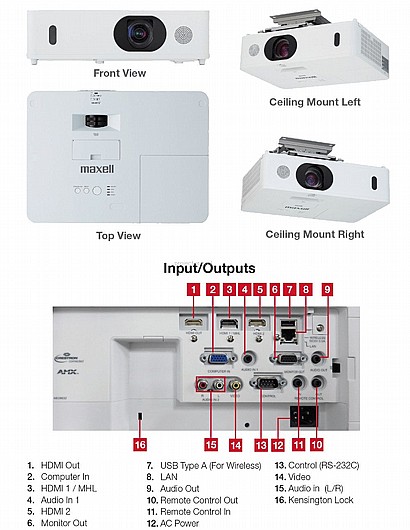

Digital Input HDMI x 2

HDMI Output HDMI x 1

Computer Input 15-pin mini D-sub x 1

Computer Monitor Output 15-pin mini D-sub x 1, HDMI x 1

S-Video Input N/A

Composite Video Input RCA jack x 1

Component Video Input 15-pin mini D-sub x 1 (shared with computer Input)

Audio Input 3.5mm stereo mini jack x 1, RCA jack (L/R) x 1

Audio Output 3.5mm stereo mini jack x 1

Network (LAN) Wired RJ-45 port (10 base-T / 100 base-TX)

Network (LAN) Wireless USB-A, IEEE802.11 b/g/n – optional wireless adapter required

HDBaseT N/A

USB Type A x 1 (wireless network)

Control Terminals 9-pin D-sub x 1 (RS-232 control)

Power Supply AC 100-120V/220-240V, 50/60Hz

Power Consumption 440W / 420W

Operating Temperature 32°F – 95°F (0°C-35°C) (Standard mode) 32°F – 104°F (0°C-40°C) (Eco Mode)

Dimensions (W x D x H) 18.1" x 13.1" x 5.4" (excluding protruding parts)

Weight Approximately 14 lbs.

Approvals UL 60950-1 / cUL, FCC Part 15 subpart B class A
