Display Technology Single 0.7” XGA DMD chip DLP® Technology by Texas Instruments
Native Resolution XGA 1024 x 768
Brightness 6000 ANSI Lumens
Contrast Ratio 10,000:1
Lamp Life2 Bright 2500 (hrs)
Throw Ratio 3 1.8 - 2.1:1
Zoom Type 1.15x Manual

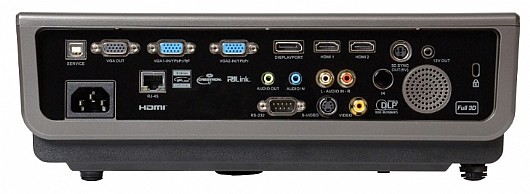

I/O Connectors 2 x HDMI, DisplayPort, 2 x VGA (RGB/YPbPr), S-Video, Composite, 2 x Audio In (RCA/3.5mm), Audio Out 3.5mm 3.5mm, VGA Out, RJ45, RS232, USB service, 12V trigger, 3D-Sync
Speaker (Watts) 3
Keystone Correction ± 15° Vertical
Weight 7.9 lbs (3.6 kg)
Dimensions (W x H x D) 326 x 254 x 104
Aspect Ratio 4:3 Native, 16:9 Compatible
Offset 112%
Projection Screen Size 0.71 – 8.34m (28.01” - 328.38”) Diagonal 4:3
Projection Distance 1.2 - 12 metres
Projection Lens F/2.6~2.81; f=26.9~29.84mm, 1.15x Manual Zoom
Uniformity 85%
Maximum Resolution UXGA 1600 x 1200
Computer Compatibility UXGA, SXGA, XGA, SVGA, VGA, Mac
Video Compatibility PAL (B, D, G, H, I, M, N, 576i/p), NTSC (M, 4.43/3.58 MHz, 480i/p), SECAM (B, D, G, K, K1, L) HD (1080i, 720p)
3D Support Full 3D - The 3D features of Optoma projectors can only be used with compatible 3D content. Typical applications include use with 3D educational or 3D design and modelling systems. 3D TV broadcast systems, (SKY in the UK), Blu-ray 3D™ and 3D games from the Sony® PS3 or Microsoft® Xbox 360 are now supported as part of the HDMI v1.4a specification.
3D Compatibility Side-by-Side:1080i50 / 60, 720p50 / 60
Frame-pack: 1080p24, 720p50 / 60
Over-Under: 1080p24, 720p50 / 60
Horizontal Scan Rate 15 - 91kHz
Vertical Scan Rate 25 - 144Hz
Displayable Colors 1.07 Billion
Noise Level (Eco mode) 28dB
Power Supply 100-240V, 50-60Hz
Power Consumption 370W Bright mode / 320W Eco mode (< 0.5W Standby)
Lamp Type 310W
Operating Conditions 5°C - 45°C, Max. Humidity 85%, Max. Altitude 2500m
Security Security bar, Kensington lock, password protection
On Screen Display 19 Languages: English, German, French, Italian, Spanish, Portuguese, Polish, Dutch, Russian, Finnish, Swedish, Greek, Norwegian/Danish, Hungarian, Czech, Turkish, Romanian, Farsi, Arabic
Standard Accessories Carry bag, lens cap, AC power cord, VGA cable, remote control, 2x AA batteries, quick start card, CD user manual
Optional Accessories DLP® Link™ 3D glasses, wireless, ceiling mount
Optional Wireless Yes
360’ Operation Not supported
Portrait Mode Not supported
RoHS Compliant
