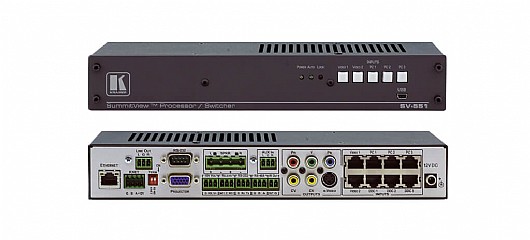

פיקוד חדר ישיבות Kramer SV-551

יצרן: Kramer ,
SummitView™ BrainBox™ Processor/Switcher & Room Controller,
5 video with audio input (3 VGA/YUV & 2 CV/s–Video),
DDC support for VGA,
Aux Line Input,
Controlled by — Ethernet, 10V volume level, wall plate controllers,
Room Control Ports — 2 RS–232, 1 RS–485, 1 IR, 2 relays, & Ethernet,
Size — Desktop — Can be mounted in a 1U rack space with the optional RK–551 or in the SV–1 above the ceiling mount projector,

שימוש:
Classrooms,
Training rooms,
Presentation rooms.

מאפיינים ושידרוגים:

פרטים נוספים:

אחריות: 12 חודשים
זמן אספקה: עד7ימי עסקים
דגם: Kramer Sv-551

מחיר ₪ 5,347 ILS 11/7/2027 In stock KRAMER ELECTRONICS Kramer Sv-551 Kramer Sv-551

קנה עכשיו הוסף לסל

תיאור מלא
מפרט טכני
חוות דעת

Video Inputs — 5 total; 8 RJ–45 from 5 wall plates via CAT 5, 3 computer graphics or component video, 3 DDC and 2 composite or s–Video.
Video Outputs — 15–pin HD (for computer graphics video), 3 RCAs (for component video), 2 RCAs (for 2 composite video) and 4–pin (for s–Video).
Audio — S/PDIF or unbalanced stereo audio (from the wall plate input module) is output (with optional tone control) to a balanced amplified stereo audio speaker output and audio line out on a terminal block connector.
AUX Audio Input — Mixes an additional audio source such as a microphone at line level.
Audio Outputs — 1 stereo speakers & 1 monitor.
Flexible Control Options — SummitView™ controllers (RC–62 & RC–63) via K–NET™ channel. Also supported: Ethernet, 10V volume control and front panel switching.
K–NET™ Control Channel — Provides power and control data to the wall plate controllers over a single cable.
Power Connect™ System — The SV–551 provides power to the wall plate input units via the CAT 5 cable.
Control Ports — Control AV equipment with 2 RS–232, 1 RS–485, 1 IR, 2 relays, and Ethernet ports.
Kramer Site–CTRL™ Compatible — For network remote control and management using Kramer Site–CTRL software over the Ethernet port.
