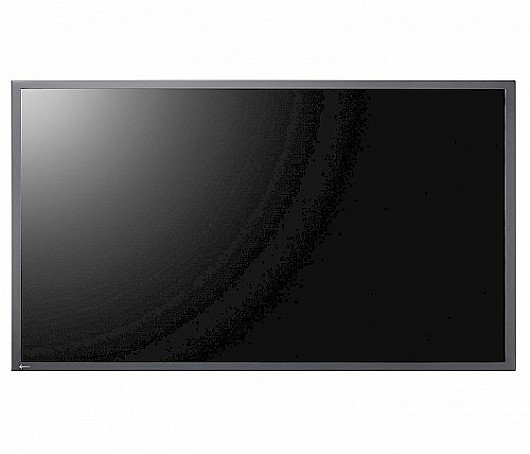

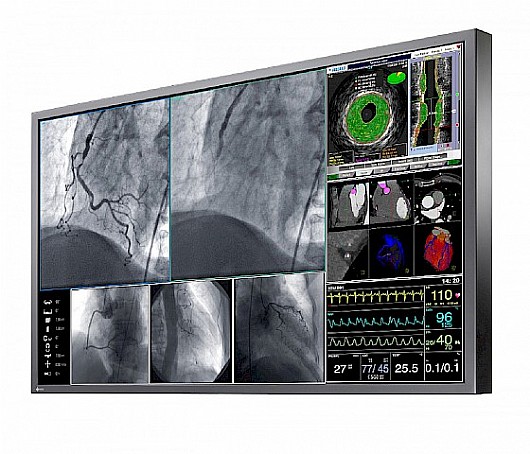

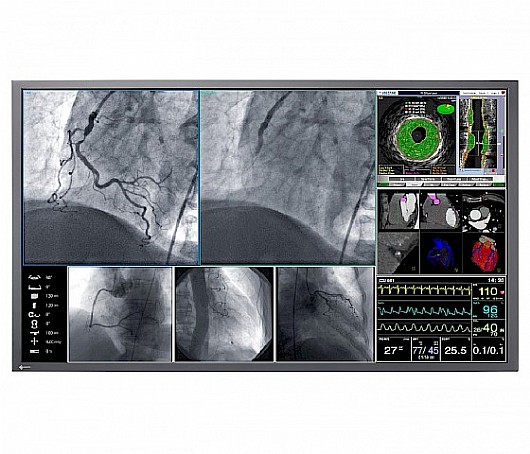

The large 60-inch viewing area enables flexible display of different modality images on one screen without distracting frames between individual pictures. The monitor's redundant components and LED backlight make it ideal for long-term stable and reliable use in the operating room.
- Environmentally-friendly LED backlight offers a maximum brightness of 520 cd/m².
- Redundant components architecture for a high degree of operational reliability.
- Grayscale tones adjusted at the factory to meet DICOM Part 14 standard for optimum viewing of medical DICOM images.
- 5 user-selectable 11-bit look-up tables enable accurate viewing of any type of medical image.
- Homogeneous brightness uniformity across the entire screen.
Everything in a Single Glance
Large widescreen monitors with high resolution can be used instead of single 1 Megapixel monitors in ceiling suspensions. Compared with multi-monitor scenarios, these large screen monitors have no regional color differences or obtrusive bezels, thus reducing eye fatigue and the potential for distraction.
Quick Brightness Stabilization for Instant Viewing
EIZO's fully automated stability function makes use of an internal backlight sensor to quickly stabilize the brightness level at startup and to compensate for fluctuations caused by variations in ambient temperature and the passage of time.
Consistency with DICOM Part 14 Calibration
The monitor is calibrated to comply with DICOM Part 14 to offer rendering consistency over time.
Diagnostic Precision with Factory Adjustment
To ensure the most accurate and consistent shadings possible, EIZO carefully measures and sets every grayscale tone on the production line to offer monitors fully compliant with DICOM Part 14.
Brightness Uniformity for Constant Brightness Across the Screen
The Digital Uniformity Equalizer (DUE) function provides optimum backlight luminance uniformity which is considered difficult to attain due to the characteristics of LCD monitors, especially with larger screen sizes.
Comfortably View from Any Angle
Wide viewing angles allow the monitor to be viewed from the side with minimal color shift, thus offering a quality image to multiple persons watching from different perspectives simultaneously.
Work Safely with Minimal Picture Delay
With images displayed on the screen in real time, time critical aspects of image distribution are addressed to ensure e.g. safe catheter localization during insertion into an artery.
Operational Reliability Through Redundant Components
With its redundant components architecture (2 power supplies, 2 backlights, 2 transmission links), EIZO ensures a high degree of operational reliability for fail-safe environments. A monitoring function can be configured to notify the X-ray system if e.g. operating conditions become critical or a component fails.
Environmentally-Friendly LED Backlight
By utilizing an energy-efficient LED as a backlight, the monitor achieves a high-brightness and low power consumption at the same time. Unlike conventional CCFL backlights, LED backlights deteriorate more slowly and thus the monitor offers a longer service life. Since the LED backlight is mercury free, it will reduce any potential impact on the environment when it is disposed of.
Arm Mountable VESA Compliance
VESA compliance to be attached to existing mounting accessories.
LCD Panel Protector for Easy Cleaning
The panel protector secures the screens from scratches, damages and liquids and alleviates cleaning and disinfection of the front surface.
Customer Assurance with Medical Standards
The monitor meets the strictest medical, safety, and EMC emission standards.
