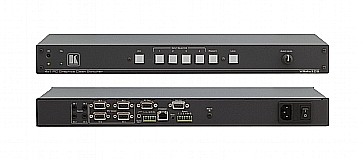

קופסת מיתוג (בורר)Kramer VP-4x1CS -ממתג (בורר) 4 כניסות VGA ואודיו ליציאת VGA אחת.

ממתג (בורר) 4 כניסות VGA ואודיו ליציאת VGA אחת.

מאפיינים ושידרוגים:

מחיר ₪ 5,724 ILS 2027-10-09 In stock KRAMER ELECTRONICS VP-4x1CS VP-4x1CS

קנה עכשיו הוסף לסל

INPUTS:	4 computer graphics on 15−pin HD connectors, 4 unbalanced stereo audio on 3.5mm mini jack connectors.
OUTPUTS:	1 computer graphics on a 15−pin HD connectors, 1 balanced stereo audio on a 5−pin terminal block, 1 unbalanced stereo audio on a 3.5mm mini jack.
VIDEO BANDWIDTH:	Up to UXGA (including WUXGA).
VIDEO COUPLING:	DC.
COLOR PHASE:	0Deg.
VIDEO INPUT IMPEDANCE:	75Ω.
VIDEO OUTPUT IMPEDANCE:	75Ω.
VIDEO S/N RATIO:	>–52dB @5MHz unweighted.
VIDEO ISOLATION/CROSSTALK:	<–54dB @5MHz unweighted.
AUDIO COUPLING:	AC.
AUDIO INPUT IMPEDANCE:	100kΩ.
AUDIO OUTPUT IMPEDANCE:	150Ω.
DC OFFSET:	40mV.
AUDIO BANDWIDTH:	21kHz @–3dB.
AUDIO SIGNAL/NOISE RATIO:	86dB @1kHz A weighted.
THD + NOISE:	0.008% @1kHz A weighted.
AUDIO CROSSTALK:	–72dB @1kHz.
POWER CONSUMPTION:	100−240V AC, 50/60Hz, 23VA.
CONTROLS:	Front panel buttons, infrared remote control transmitter, RS−232, Ethernet, audio level, remote contact closure input selector switches, remote contact closure mute switch.
OPERATING TEMPERATURE:	0° to +40°C (32° to 104°F).
STORAGE TEMPERATURE:	−40° to +70°C (−40° to 158°F).
HUMIDITY:	10% to 90%, RHL non−condensing.
DIMENSIONS:	19” x 7.28” x 1U (W, D, H).
WEIGHT:	1.7kg (3.74lbs) approx.
INCLUDED ACCESSORIES:	Power cord, IR transmitter, rack ”ears”.
OPTIONS:	External remote IR receiver cable.
