ממיר אות DVI לאופטי Kramer 616R/T

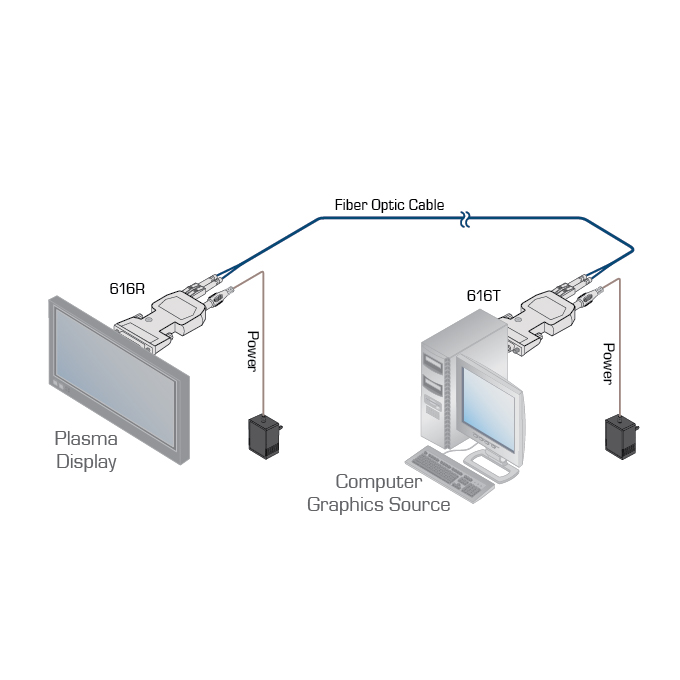

The 616T and 616R are detachable 4K60 4:2:0 dual−link DVI over MM fiber ultra−reach transmitter and receiver pair. They transmit uncompressed resolutions of up to WQXGA (2560x1600 @60Hz) or WQUXGA (3840x2400 @33Hz vertical refresh rate) (4K) over dual−link DVI to a range of up to 500 meters (1640 feet). They use duplex multimode fiber optic cable with two LC connectors. The 616T converts dual−link DVI signals to optical signals that it transmits to the 616R. The 616R decodes the optical signals back to a dual−link DVI signal.

Max. Data Rate — 13.5Gbps (2.25Gbps per graphic channel).
Max. Resolution — HDTV: 480p, 720p, 1080p; Vesa: VGA to WQUXGA @33Hz (XGA not supported).
4K Compatible.
Not HDCP Compliant.
Standards Compliance — Supports DVI1.0, fully implemented by fiber–optic communication and DDC2B by virtual DDC; Class A digital device, pursuant to part 15 and 2 of FCC and CE.
Laser Standards Compliance — IEC 60825–1, FDA 21CFR1040; Laser Class 1: Safety of laser products.
System Range — Up to 500m (1640ft) (multimode).
EMI/RFI Free.
EDID Capture — Copies and stores the EDID from a display device (616T).
Cable — Duplex multimode fiber optic cable with two LC connectors.
Power — External power adapters (supplied) or 5V DC from source (auto detect).
