Max. Data Rate — 3Gbps.
HDTV Compatible.
Optional SFP Modules — Maximum of 4 can be installed. Minimum of 1 is required.
Genlock Looping Input.
Selectable Sync Signal Termination.
Automatic Reclocking and Equalization.
Active Input™ Reporting — Each input button on the front panel automatically lights up when the unit detects a video signal on that input. Red indicates a standard definition (SDI) input signal and blue indicates a high definition (HD–SDI) input signal.
Multiple Memory Locations — Stores multiple switches as presets (salvos) to be recalled and executed when needed.
Take Button — Executes multiple switches all at once.
Vertical Interval Switching — Compliant with SMPTE RP–168.
Range — 2–40km depending on SFP modules installed.
Built–in Black Burst Generator.

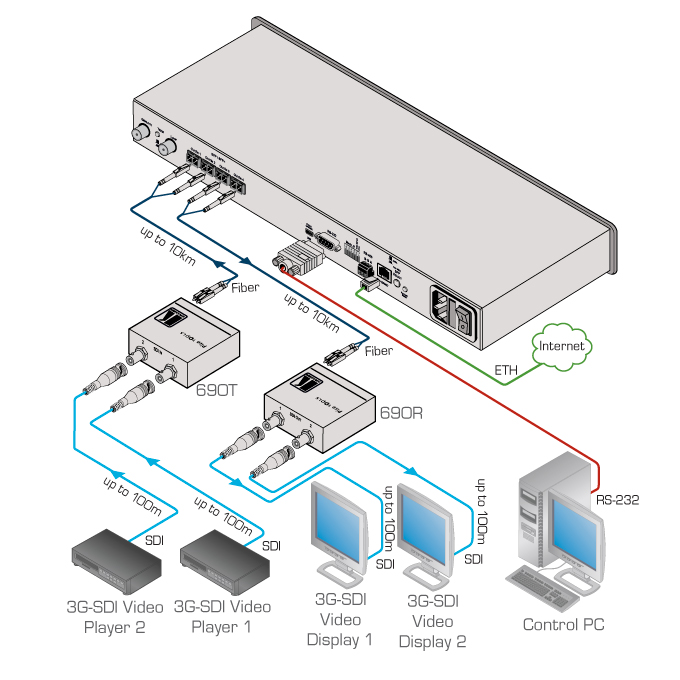

Compatible Transmitter & Receiver — 690T & 690R.
Flexible Control Options — Front panel, RS–232 (with K–Router™ Windows®–based software), RS–485, Ethernet and IR remote (included).
Worldwide Power Supply — 100–240V AC.
Standard 19” Rack Mount Size — 1U. Rack "ears" included.
