ממיר תמונה Kramer TP-590TXR עם כניסה HDMI ויציאה HDBT

יצרן: Kramer,
4K60 4:2:0 HDMI PoE Transmitter with USB, Ethernet, RS–232, IR & Stereo Audio over Extended–Reach HDBaseT 2.0,
HDBaseT 2.0 receiver,
Extended–reach — Up to 100m (330ft) at 4K @60Hz (4:2:0),
Bandwidth — Up to 10.2Gbps,
Video resolution — Up to 4K@60Hz (4:2:0) 24bpp,
Compliance — HDMI 2.0, HDCP 1.4,
Stereo analog audio drop–and–continue,
EDID and CEC pass–through,
Up to 127Mbps USB 2.0 HID extension,
Up to 100Mbps Ethernet extension,
Bidirectional RS–232 & IR extension,
Built–in web UI management,
PoE Powered,
Size — MegaTOOLS® — Mount 2 units side–by–side in a 1U rack space with the optional RK–T2B rack adapter,
Audio — U/E,

שימוש:

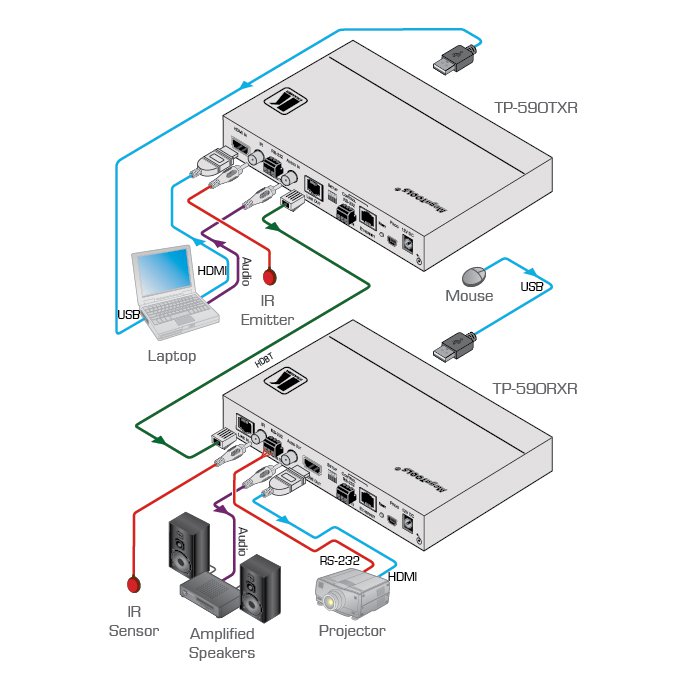

Long–distance AV, USB and LAN signal extension for multi–room, large dividable auditoriums and lecture hall connectivity,
KVM extension in conference rooms, boardrooms, control rooms, hotels and large church facilities

מאפיינים ושידרוגים:

פרטים נוספים:

אחריות: 12 חודשים
זמן אספקה: עד14ימי עסקים
דגם: KRAMER TP-590TXR

מחיר ₪ 3,435 ILS 9/7/2027 In stock KRAMER ELECTRONICS KRAMER TP-590TXR KRAMER TP-590TXR

קנה עכשיו הוסף לסל

תיאור מלא
מפרט טכני
חוות דעת

Reach Extension — Up to 100m (330ft) at 4K @60Hz (4:2:0); up to 130m (430ft) at full HD (1080p @60Hz 36bpp); up to 180m (590ft) at HDBaseT ultra mode and full HD (1080p @60Hz 24bpp), when using Kramer HDBaseT cables.
Transmitted Data Bandwidth — Up to 10.2Gbps (3.4Gbps per graphic channel).
Transmitter Compliance — Complies with HDBaseT 2.0 receiver.
Video Resolution — Up to 4K@60Hz (4:2:0) 24bpp.
HDMI Signal Transmission — HDMI 2.0 and HDCP 1.4 compliant signal, supporting deep color, x.v.Color™, lip sync, HDMI uncompressed audio channels, Dolby TrueHD, DTS–HD, CEC, Full HD, 2K, 4K, and 3D.
Multi–channel Audio Transmission — Up to 32 channels of digital stereo uncompressed signals for supporting surround sound at studio level.
Audio Add (Embed) — A selectable analog unbalanced stereo audio input is converted into a digital signal and added (embedded) to the transmitted HDMI signal, replacing the embedded HDMI audio input signal. This enables embedding a selectable audio source over HDMI. For example, a presenter can display a video clip and temporarily override the audio of the source media with another audio source, such as from a microphone.
EDID and CEC Pass Through — Passes EDID and CEC signals from the source to the display.
USB 2.0 Transmission — Pass–through for connecting HID (Human Interface Devices) peripheral devices, such as a mouse or a keyboard.
High–bandwidth USB peripheral devices, such as USB isochronous streaming cameras and audio devices, transfer data continuously and periodically. Delivery of their transferred data is not guaranteed by the USB standard and is subject to both USB and HDBaseT line bandwidth management limitations. When such devices are connected, check their functionality to ensure bandwidth limitations are not exceeded.
Ethernet Transmission — Ethernet interface data flows in both directions to allow extension of up to 100Mbps Ethernet connectivity for LAN communication and device control.

סוג מוצר :	מתאמים ממירים Scalers
סוגי כניסות\יציאות:	HDMI, HDBT DA
מס כניסות :	1 כניסות
מס יציאות :	1 יציאה
יצרן:	Kramer
טווח מחירים:	מ - 1,001 - עד 5,000 ₪
