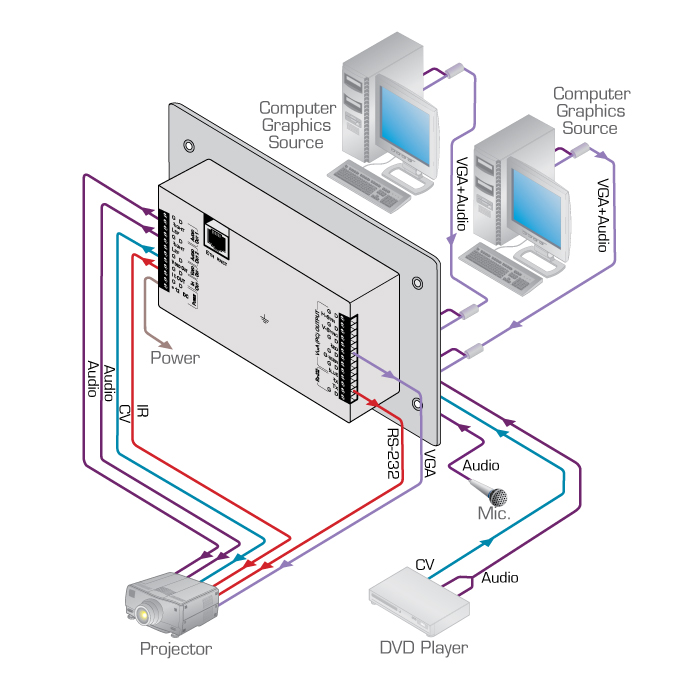

INPUTS: 1 composite video, 1Vpp/75Ω on an RCA connector; 2 VGA (PC) on 15−pin HD connectors; 2 unbalanced stereo audio on 3.5mm mini jacks; 1 unbalanced stereo audio on 2 RCA connectors; 1 condenser/dynamic microphone on a 3.5mm mini jack.
OUTPUTS: 1 video out 2−pin terminal block connector, 2 audio out 3−pin terminal block connector unbalanced stereo audio, 1 VGA (PC) out 10−pin terminal block connector.
PORTS: Ethernet, 1 IR out on terminal block connectors, 1 RS−232 on terminal block connectors, 1 USB connector.
SUPPORTED RS-232 BAUD RATES: Up to 115200.
SUPPORTED RESOLUTIONS: 640x480px60Hz (IBM VGA), 640x480px67Hz (Apple Mac II), 640x480px72Hz (VESA), 640x480px75Hz (VESA), 800x600px56Hz (VESA), 800x 600px60Hz (VESA), 800x600px72Hz (VESA), 800x600px75Hz (VESA), 1024x768px60Hz (VESA), 1024x768px70Hz (VESA), 1024x768px75Hz (VESA), 1280x1024px75Hz (VESA), 1280x1024px60Hz (VESA STD), 1280x960px60Hz (VESA STD), 1400x1050px60Hz (VESA STD), 1440x900px60Hz (VESA STD), 1600x1200px60Hz (VESA STD).
POWER CONSUMPTION: 12V, 5A.
PRODUCT DIMENSIONS: 16.20cm x 0.00cm x 11.43cm (6.38" x 0.00" x 4.50" ) W, D, H
PRODUCT WEIGHT: 0.3kg (0.6lbs) approx.
SHIPPING DIMENSIONS: 35.10cm x 21.20cm x 7.20cm (13.82" x 8.35" x 2.83" ) W, D, H
SHIPPING WEIGHT: 0.8kg (1.7lbs) approx.
INCLUDED ACCESSORIES: Power supply, screwdriver, mud ring.
OPTIONS: USB cable 0.91m (3ft), WP−500 installation cable.
