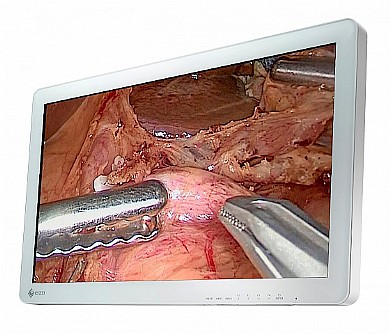

This 49" widescreen monitor is ideal for viewing DICOM X-ray images or as a second monitor in surgical environments. Numerous input and output signals, the ability to combine pictures, and factory pre-calibrated gamma models enable usage in a wide range of applications. With its fanless construction and the watertight, easy-to-clean front surface, the monitor is perfectly suited to sterile hospital environments.
• Five factory-set DICOM and Gamma 2.2 lookup tables for optimal medical image reproduction
• Quick adaptation to different environments and procedures
• Numerous video inputs and outputs for increased connectivity
• Flexible image arrangement with "picture in picture" (PiP) and "picture and picture" (PaP) functions
• Fully automated brightness stability through ISS (Integrated Stability System)
Large Display Area
With an image diagonal of 49” and a resolution of 1920 x 1080 pixels, the monitor is suited for displaying different image sources simultaneously. For example, DICOM X-rays and endoscopic images can be shown side-by-side in the surgical environment. The large image diagonal makes the monitor ideal for mounting on the OP wall and viewing images from a greater distance. Images can be scaled full screen, reproduced in their original size, or displayed in or next to one another with the PiP and PaP functions.
Comfortably View from Any Angle
Wide viewing angles allow the monitor to be viewed from the side with minimal color shift, thus offering a quality image to multiple persons watching from different perspectives simultaneously.
Preset Look-Up Tables
The monitor is pre-calibrated in the factory. With five applicationoriented look-up table (LUT) presets and a user-configurable LUT function, the monitor is easy to install and maintain. It can be quickly adapted to the local viewing and lighting conditions or application preferences as needed.
Numerous Video Inputs
The monitor can be connected to imaging systems via the various video inputs, such as DVI, HDMI, HD-SDI, Composite, S-Video and VGA. The monitor can be simultaneously connected to both digital and traditional video signals (PAL, NTSC, HD). If necessary, the video input settings can be adjusted using the OSD (On Screen Display) menu.
Simultaneous Display of Different Image Sources
Thanks to the monitor’s widescreen format, the various input signals can be displayed in “picture-in-picture” (PiP) or side by side (PaP) orientations. This reduces the need for additional monitors, allowing users to view critical source image while simultaneously maintaining a view over other vital information.
LED Backlight
The monitor is equipped with an LED backlight that has been optimized for bright environments. LED technology offers a long lifetime expectancy even at high luminance settings.
Quick Brightness Stabilization for Instant Viewing
EIZO's fully automated stability function makes use of an internal backlight sensor to quickly stabilize the brightness level at startup and to compensate for fluctuations caused by variations in ambient temperature and the passage of time.
Diagnostic Precision with Factory Adjustment
To ensure the most accurate and consistent images possible, EIZO carefully measures and sets every tone on the production line to offer image quality tailored specifically to medical needs like DICOM Part 14 or gamma 2.2.
Laminated Safety Glass for Easy Cleaning
The anti-reflective laminated safety glass ensures excellent image quality while protecting the monitor from scratch damage or liquid ingress during surgery or when cleaning and disinfecting the monitor.
Fanless Silent Design
Engineered to dissipate heat without a fan, the monitor generates no distracting noises and does not circulate dust and germs or disturb the controlled laminar airflow within the operating room.
