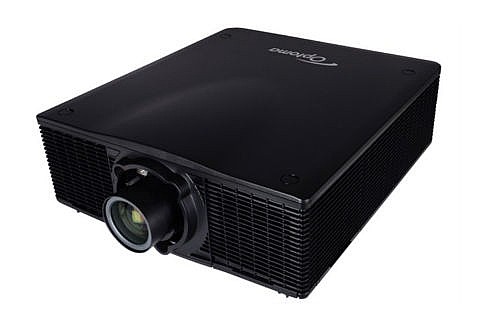

Display Technology 1 x 0.96" DLP® chip, DarkChip3™
Native Resolution WUXGA 1920 x 1200
Brightness 12000 centre lumens (11000 ANSI)
Contrast Ratio 5000:1 (1200:1 full on / full off)
ANSI Contrast 250:1
Lamp Life2 Eco/Bright 2000/1500 (hrs)
Lens Options BX-CTA18 Short Zoom 0.84 ~ 1.02
BX-CTA19 Wide Zoom 1.02 ~ 1.36
BX-CTA20 Semi- Wide Zoom 1.2 ~ 1.5
BX-CTA21 Standard 1.5 ~ 2.0
BX-CTA22 Long Zoom 2.0 ~ 4.0
BX-CTA23 Extra long Zoom 4.0 ~ 7.2
Throw Ratio 3 0.84 to 7.2:1 (dependent upon lens)
Zoom Type Motorised
Lens Shift Vertical: ±60%, Horizontal: ±25%
I/O Connectors HDMI V1.4b, DVI-D, VGA (YPb/Pr), 5 BNC, HDBaseT, 3G-SDI, Composite, USB Wireless, VGA Out, RJ45, RS-232, Wired Remote (in/out), Service Port, 3D Sync
Keystone Correction Vertical ±20°, Horizontal ±20°
Weight 52.5 lbs (23.8 kg)
Dimensions (W x H x D) 23.3" x 20.5" x 8.2" (520 x 591 x 199 mm ) w/feet.
Aspect Ratio 16:10 native, 16:9 and 4:3 compatible
Projection Screen Size 50" - 500" (dependent upon lens)
Projection Distance 2.5' to 254' (dependent upon lens)
Projection Lens Six lens options - no lens supplied as standard
Uniformity 90%
Maximum Resolution WUXGA (1920 x 1200)
Computer Compatibility WUXGA, HD, UXGA, WXGA, SXGA+, SXGA, XGA, SVGA, VGA Resized, VESA, PC and Macintosh Compatible
Video Compatibility PAL (625/576i/p), SECAM, NTSC (525/480i/p), HDTV (720p, 1080i/1080p)
Horizontal Scan Rate 15kHz to 100kHz
Vertical Scan Rate 25Hz to 85Hz
Displayable Colors 16.7 million
Noise Level (Eco mode) 39dB (Bright mode) / 36dB (Eco mode)
Noise Level 39dB (bright mode) / 36dB (eco mode)
Power Supply 100 - 240V AC, 50 – 60Hz
Power Consumption 1080W bright mode, 870W eco mode, <0.5W standby
Lamp Type 465W x 2
Operating Conditions 0˚C - 40˚C, 85% max humidity, 3000m max altitude
Operating Temperature 0 to 40 degrees C (0~2500 ft)
Heat Dissipation 3683 BTU/hr
Security Kensington Lock port, PIN code
On Screen Display 10 Languages: English, German, French, Italian, Spanish, Russian, Japanese, Korean, Simple Chinese, Traditional Chinese
Remote Control Infra-red remote control, wired connection supported
Standard Accessories AC mains power cable, VGA cable, Remote control handset, 'AAA' batteries, User manual CD, Quick start card, WEEE card, Warranty card
Optional Accessories Short ceiling mount, Long ceiling mount, Projector base plate, Rich Colour wheel 6 segment RGBCYM
Optional Wireless Yes
360’ Operation Yes (around horizontal axis)
Portrait Mode Yes
Color Wheel Bright wheel 6 segment RGBCYW (standard)
Rich Color wheel 6 segment RGBCYM (optional)
Warranty 3 Years
Conformances CE, TUV-GS, CB
RoHS RoHS and WEEE
Projection method Front, rear, ceiling mount, table-top, 360° (horizontal axis), portrait
Features 6x optional lens, motorised lens shift, dual lamps, mechanical shutter, 3G-SDI, 360° operation, portrait projection, edge blending
