Native Resolution
1024 x 768
Native Aspect Ratio
4:3
Brightness
3300 lumens
Display Device
0.55 -inch DLP® chip
Contrast Ratio
20000:1
Lens Type
1.5X Manual Zoom & Focus
Lens Offset
50%
Light Source
Laser & LED
Estimated Light Source Life
Up to 20,000 Hours
Screen Size (Min-Max)
30 to 300 inch diagonal
Projection Range
—
60-inch screen
6.4 ~ 9.4 ft
100-inch screen
10.9 ~ 15.9 ft
Minimum Throw Distance
3.1 ft
Throw Ratio
1.66 - 2.42:1
Keystone Correction
Vertical +30° (Auto) Vertical + or - 30° (Manual)
Color Reproduction
Full color (up to 1.07 billion colors)
Power Source
AC100~240V, 50/60Hz
Power Consumption
Operating
180 W - light control “off” Bright selected
145 W - light control “on” and “Light Output 7” selected
Standby
0.12 W
TERMINAL CONNECTIVITY
Video Signal Compatibility
Video Systems
No
DTV/HDTV
480i/480p/576i/576p/720p/1080i/1080p
Maximum Computer Input
WUXGA (1920 x 1200) *Reduced blanking signal
INPUTS
RGB/Component Video Input
mini D-Sub 15 pin x 1 (Also use as YCbCr/YPbPr input— commercially
available adapter required)
HDMI
HDMI Type A x 1 HDCP and audio support
Composite Video
No
Audio
3.5mm stereo mini jack x 1
Microphone
No
USB
No
Built-in Memory
No
Logo Transfer
No
Wireless Capability
No
OUTPUTS
Audio
3.5mm Stereo Mini Jack x 1 (variable audio)
RGB Output
No
AUDIO AND CONTROL SYSTEMS
Audio System
No
Control Terminal
—
RS-232
RS-232C (D sub 9 pin) x 1, Cross Cable (Null Modem) required
LAN
No
נא לבדוק ז

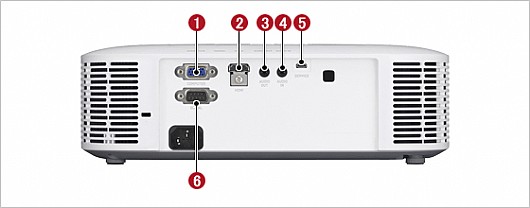

Computer terminal
HDMI terminal
Audio output terminal
Audio input terminal
USB terminal(Micro-B)
Control terminal(RS-232C)
